LATTICE SEMICONDUCTOR

LFE2-12E-5TN144C

Datasheet

FPGA 12000-Cell 311MHz TQFP-144 1.2V 93 I/O

Lattice Semiconductor

LFE2-12E-5TN144C

Name: LFE2-12E-5TN144C Lattice Semiconductor
Brand: Lattice Semiconductor
SKU: LFE2-12E-5TN144C

FPGA 12000-Cell 311MHz TQFP-144 1.2V 93 I/O

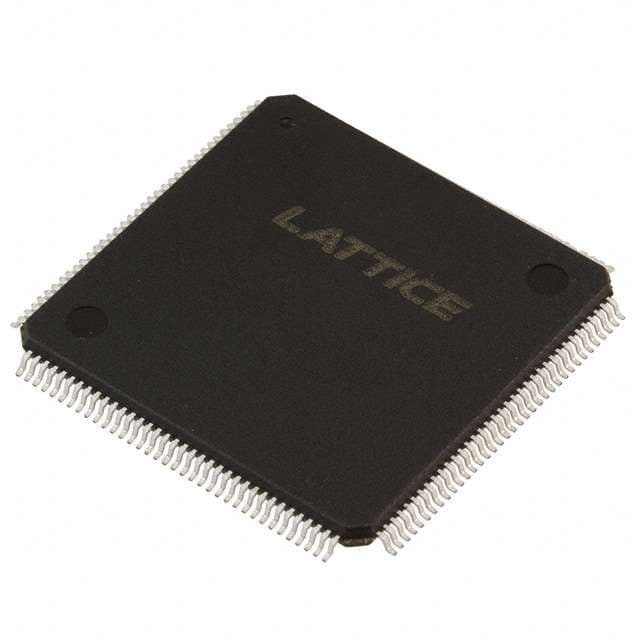

Field Programmable Gate Array (FPGA) with 12,000 logic cells and 6,000 macrocells, operating at a frequency of 311MHz. Features 1500 logic blocks and 226,304 bits of RAM. This surface-mount device is housed in a 144-pin TQFP package (20mm x 20mm x 1.4mm) with 93 I/Os. It operates with a supply voltage of 1.2V (1.14V to 1.26V) and is RoHS compliant, suitable for temperatures from 0°C to 85°C.

Frequency311MHz

PackageTQFP

MountingSurface Mount

Quick Jump:

Technical Specifications

Lattice Semiconductor LFE2-12E-5TN144C technical specifications.

General

Package/Case	TQFP
Frequency	311MHz
Height	1.4mm
Lead Free	Lead Free
Length	20mm
Max Operating Temperature	85°C
Memory Size	245Kb
Min Operating Temperature	0°C
Max Supply Voltage	1.26V
Min Supply Voltage	1.14V
Mount	Surface Mount
Number of I/Os	93
Number of Logic Blocks (LABs)	1500
Number of Logic Elements/Cells	12000
Number of Macrocells	6000
Operating Supply Voltage	1.2V
Package Quantity	60
Packaging	Tray
RAM Size	226304b
Reach SVHC Compliant	No
RoHS Compliant	Yes
Series	ECP2
Termination	SMD/SMT
Width	20mm
