LFE2M20E-6FN484C

Datasheet

Field Programmable Gate Array, 19000 Logic Elements, 357MHz, 1.2V, FBGA-484

Lattice Semiconductor

LFE2M20E-6FN484C

Name: LFE2M20E-6FN484C Lattice Semiconductor
Brand: Lattice Semiconductor
SKU: LFE2M20E-6FN484C

Field Programmable Gate Array, 19000 Logic Elements, 357MHz, 1.2V, FBGA-484

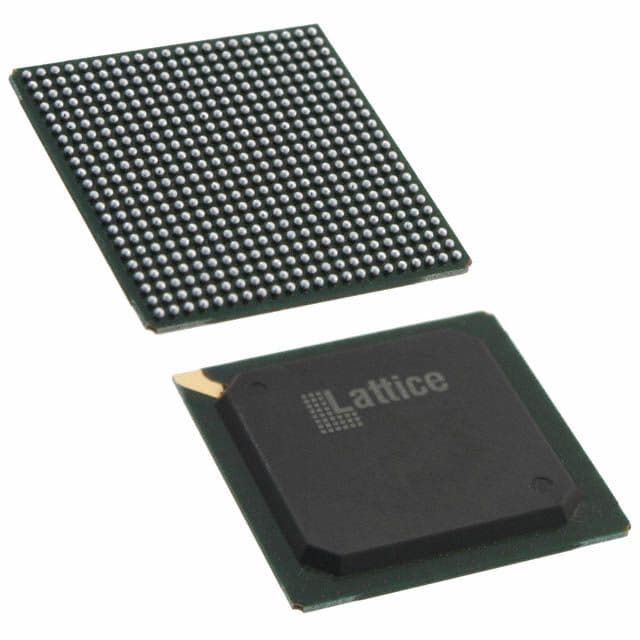

The LFE2M20E-6FN484C is a Field Programmable Gate Array (FPGA) from Lattice Semiconductor. It features 19000 logic elements, a maximum operating frequency of 357MHz, and an operating supply voltage of 1.2V. The device is packaged in a 484-ball Flip-Chip Ball Grid Array (FBGA) and is suitable for surface mount applications. The LFE2M20E-6FN484C is RoHS compliant and operates over a temperature range of 0°C to 85°C.

Frequency357MHz

PackageFBGA

MountingSurface Mount

Quick Jump:

Chat with Datasheet

Technical Specifications

Lattice Semiconductor LFE2M20E-6FN484C technical specifications.

General

Package/Case	FBGA
Lead Free	Lead Free
Max Frequency	357MHz
Max Operating Temperature	85°C
Max Supply Voltage	1.26V
Memory Size	1258Kb
Min Operating Temperature	0°C
Min Supply Voltage	1.14V
Mount	Surface Mount
Number of I/Os	304
Number of Logic Blocks (LABs)	2375
Number of Logic Elements/Cells	19000
Operating Supply Voltage	1.2V
Package Quantity	60
Packaging	Tray
Radiation Hardening	No
RAM Size	1246208b
RoHS Compliant	Yes
Series	ECP2M
