Lattice Semiconductor
LFXP2-17E-6FTN256C
Field Programmable Gate Array, 435MHz, 17000-Cell, CMOS, PBGA256, 17 X 17 MM, LEAD FREE, FTBGA-256
PackageLBGA
MountingSurface Mount
Quick Jump:
Technical Specifications
Lattice Semiconductor LFXP2-17E-6FTN256C technical specifications.
General
Package/Case
LBGA
Lead Free
Lead Free
Max Operating Temperature
85°C
Memory Size
311Kb
Min Operating Temperature
0°C
Max Supply Voltage
1.26V
Min Supply Voltage
1.14V
Mount
Surface Mount
Number of I/Os
201
Number of Logic Blocks (LABs)
2125
Number of Logic Elements/Cells
17000
Operating Supply Voltage
1.2V
Package Quantity
90
Packaging
Tray
Radiation Hardening
No
RAM Size
282624b
RoHS Compliant
Yes
Series
XP2
Compliance
RoHS
Compliant
Datasheet
Lattice Semiconductor LFXP2-17E-6FTN256C Datasheet
Download the complete datasheet for Lattice Semiconductor LFXP2-17E-6FTN256C to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

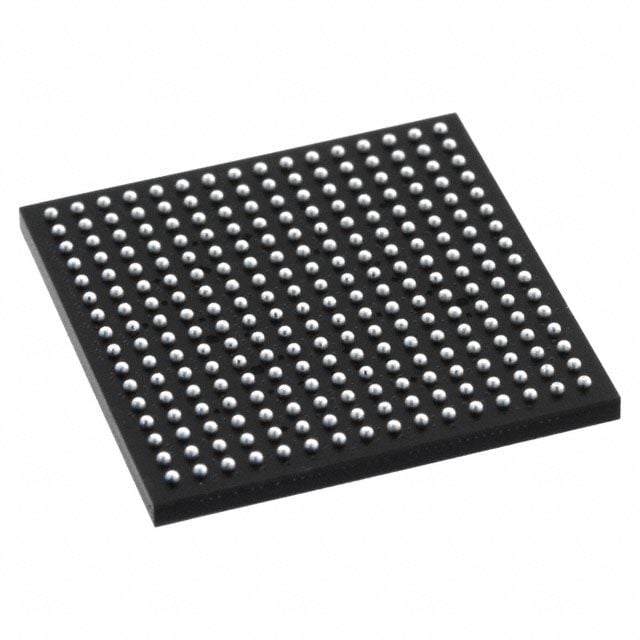

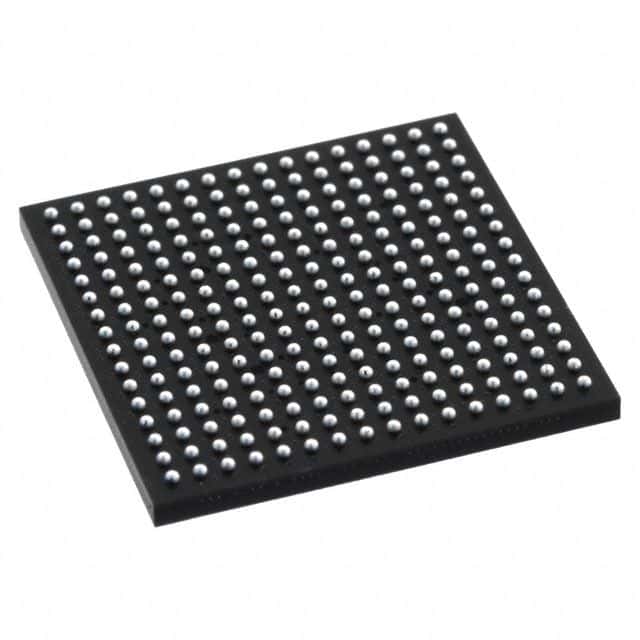

Product Images
