Technical Specifications
LEM CKSR50-NP technical specifications.
General
Accuracy
0.8%
Package/Case
Module
Current Sensing
50A
Frequency
300kHz
Linearity
1%
Max Operating Temperature
105°C
Min Operating Temperature
-40°C
Max Supply Current
20mA
Max Supply Voltage (DC)
5.25V
Min Supply Voltage (DC)
4.75V
Mount
Through Hole, PCB
Number of Channels
1
Operating Supply Voltage
5.25V
Overall Depth
13.4mm
Package Quantity
50
Packaging
Rail/Tube
Reach SVHC Compliant
No
Response Time
0.3us
RoHS Compliant
Yes
Sensitivity
12.5mV/A
Series
CKSR
Compliance
RoHS
Compliant
Datasheet
LEM CKSR50-NP Datasheet
Download the complete datasheet for LEM CKSR50-NP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

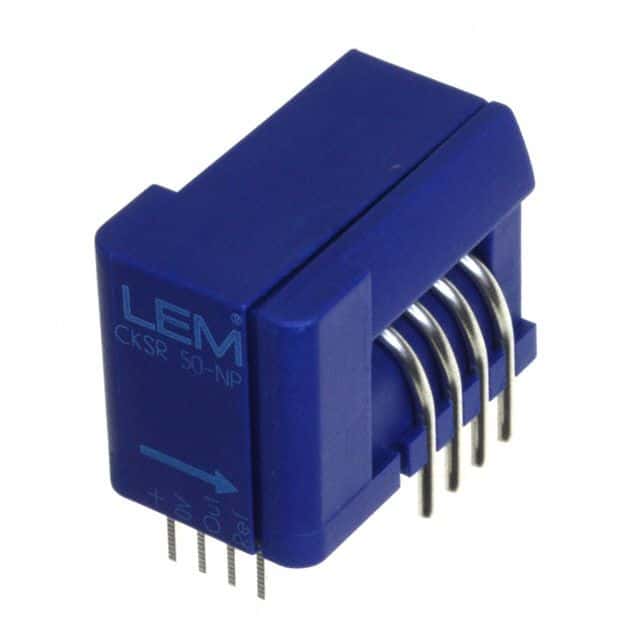

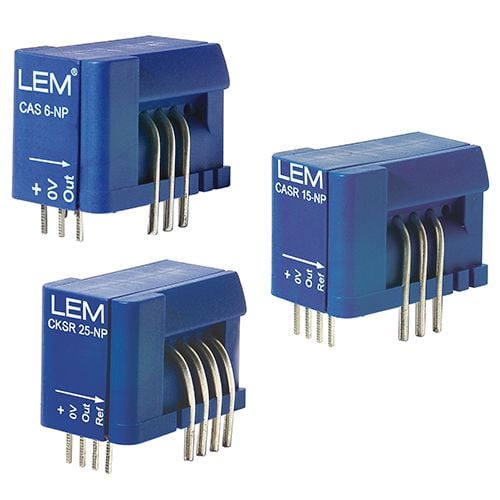

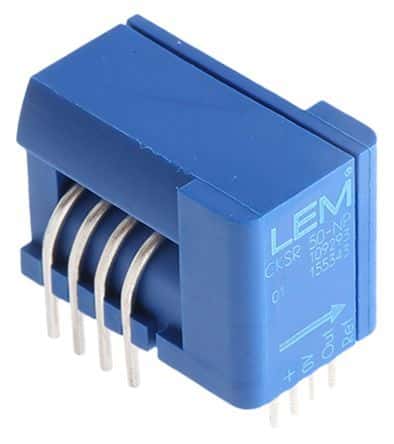

Product Images
