Frequency6kHz
PackageModule
MountingPanel, Screw
Quick Jump:
Technical Specifications
LEM DHR1000C420 technical specifications.
General
Accuracy
1%
Package/Case
Module
Current Sensing
1kA
Flammability Rating
UL94 V-0
Frequency
6kHz
Linearity
1%
Max Operating Temperature
70°C
Min Operating Temperature
-40°C
Max Supply Current
30mA
Max Supply Voltage (DC)
50V
Min Supply Voltage (DC)
20V
Mount
Panel, Screw
Number of Channels
1
Operating Supply Voltage
50V
Overall Depth
25mm
Package Quantity
6
Packaging
Bulk
Ratings
IP20
Reach SVHC Compliant
No
Response Time
150ms
RoHS Compliant
Yes
Series
DHR
Wire/Cable Diameter
32mm
Compliance
RoHS
Compliant
Datasheet
LEM DHR1000C420 Datasheet
Download the complete datasheet for LEM DHR1000C420 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

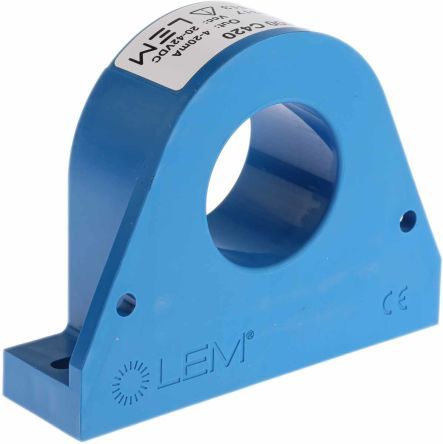

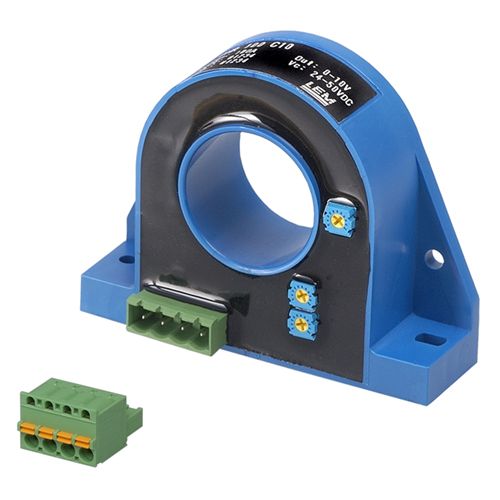

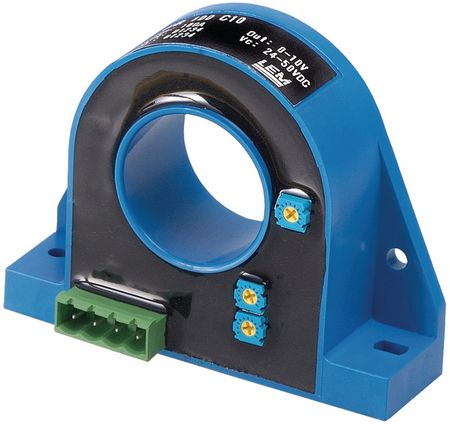

Product Images
