Current transducer for 150A sensing with 1% accuracy and 0.5% linearity. Features a 50kHz frequency response and 5µs response time. Operates from a 4.75V to 5.25V DC supply, consuming a maximum of 19mA. Packaged as a through-hole, PCB-mountable module with dimensions of 33mm (L) x 14mm (W) x 29mm (H). Rated UL94 V-0 for flammability and is RoHS compliant.
Frequency50kHz
PackageModule
MountingThrough Hole, PCB
Quick Jump:
Technical Specifications
LEM HAIS150-P technical specifications.
General
Accuracy
1%
Package/Case
Module
Current Sensing
150A
Flammability Rating
UL94 V-0
Frequency
50kHz
Height
29mm
Lead Free
Lead Free
Length
33mm
Linearity
0.5%
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Current
19mA
Max Supply Voltage (DC)
5.25V
Min Supply Voltage (DC)
4.75V
Mount
Through Hole, PCB
Number of Channels
1
Operating Supply Voltage
5V
Overall Depth
14mm
Packaging
Tray
Reach SVHC Compliant
No
Response Time
5us
RoHS Compliant
Yes
Series
HAIS
Width
14mm
Wire/Cable Diameter
8mm
Compliance
RoHS
Compliant
Datasheet
LEM HAIS150-P Datasheet
Download the complete datasheet for LEM HAIS150-P to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

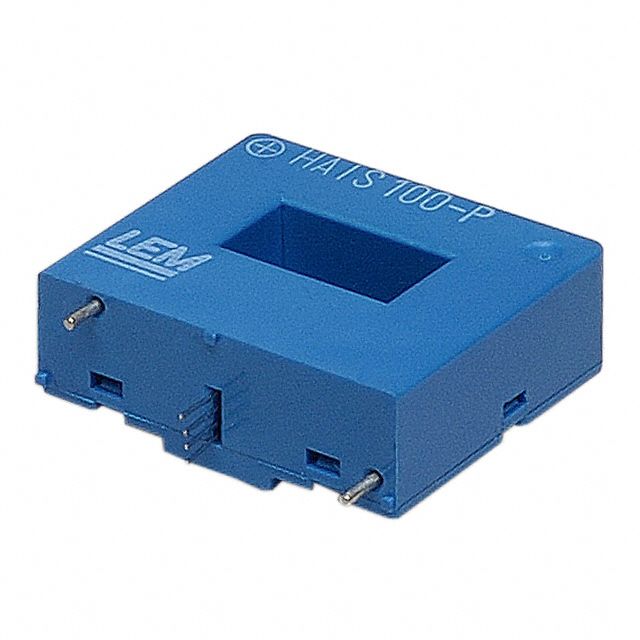

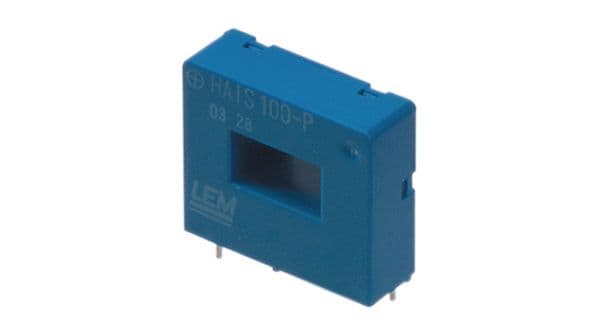

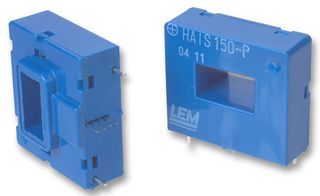

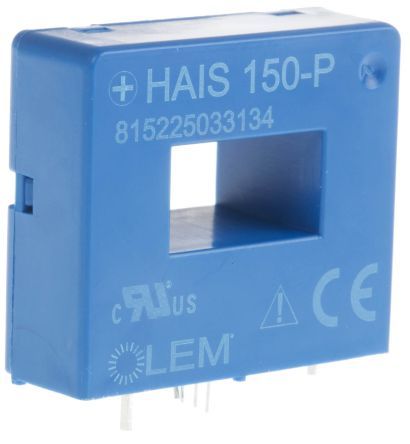

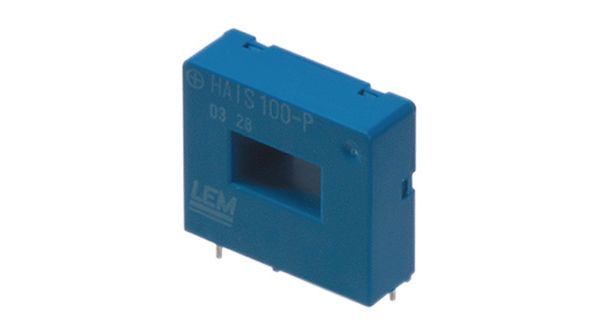

Product Images
