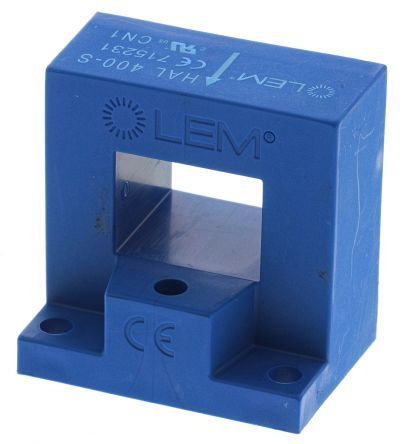

The HAL400-S current sensor from LEM offers 400A current sensing with 1% accuracy and a frequency response of 50kHz. It is available in a module package with a panel mount and operates over a temperature range of -25°C to 85°C. The sensor is RoHS compliant and has a response time of 3us. It is designed for general use and is not Reach SVHC compliant.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the LEM HAL400-S datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Accuracy | 1% |
| Package/Case | Module |
| Current Sensing | 400A |
| Flammability Rating | UL94 V-0 |
| Frequency | 50kHz |
| Linearity | 0.5% |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -25°C |
| Max Supply Current | 25mA |
| Max Supply Voltage (DC) | 15V |
| Min Supply Voltage (DC) | -15V |
| Mount | Panel |
| Number of Channels | 1 |
| Operating Supply Voltage | 15V |
| Overall Depth | 31.3mm |
| Packaging | Bulk |
| Reach SVHC Compliant | No |
| Response Time | 3us |
| RoHS Compliant | Yes |
| Series | HAL |
| Wire/Cable Diameter | 15mm |
| RoHS | Compliant |
