Technical Specifications

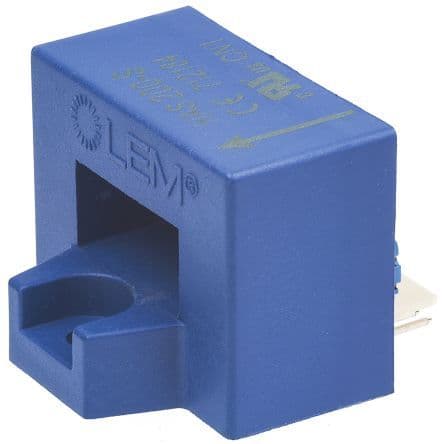

LEM HAS200-S technical specifications.
General
Accuracy
1%
Package/Case
Module
Current Sensing
200A
Frequency
50kHz
Height
30mm
Lead Free
Lead Free
Length
40mm
Linearity
1%
Max Operating Temperature
80°C
Min Operating Temperature
-10°C
Max Supply Current
15mA
Max Supply Voltage (DC)
15.75V
Min Supply Voltage (DC)
14.25V
Mount
Through Hole, Screw
Number of Channels
1
Operating Supply Voltage
15V
Output Voltage
4V
Packaging
Tray
Reach SVHC Compliant
No
Response Time
3us
RoHS Compliant
Yes
Series
HAS
Width
30mm
Compliance
RoHS
Compliant
Datasheet
LEM HAS200-S Datasheet
Download the complete datasheet for LEM HAS200-S to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
