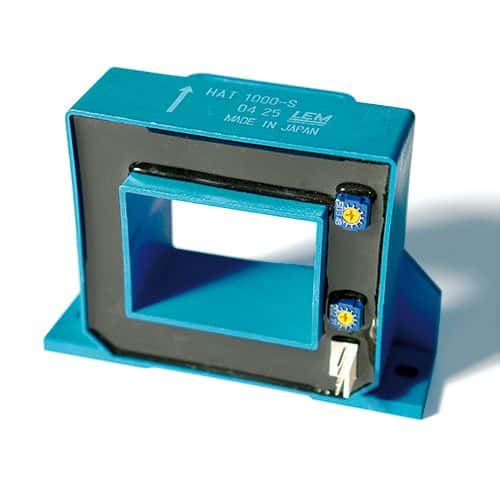

The HAT1000-S current sensor module from LEM offers 1% accuracy and can sense currents up to 1kA. It operates within a temperature range of -40°C to 105°C and requires a maximum supply current of 15mA. The module is designed for chassis mount and has a response time of 5us. It is packaged in a tray with 5 units per package and is lead-free compliant.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the LEM HAT1000-S datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
LEM HAT1000-S technical specifications.
| Accuracy | 1% |
| Package/Case | Module |
| Current Sensing | 1kA |
| Frequency | 25kHz |
| Lead Free | Lead Free |
| Linearity | 1% |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Max Supply Current | 15mA |
| Mount | Chassis Mount, Base, Screw |
| Number of Channels | 1 |
| Operating Supply Voltage | 15V |
| Output Voltage | 4V |
| Overall Depth | 37mm |
| Package Quantity | 5 |
| Packaging | Tray |
| Response Time | 5us |
| Series | HAT |
| Wire/Cable Diameter | 30.5mm |
| RoHS | Compliant |
