Frequency25kHz
PackageModule
MountingChassis Mount, Base, Screw
Quick Jump:
Technical Specifications
LEM HAT200-S technical specifications.
General
Accuracy
1%
Package/Case
Module
Current Sensing
200A
Frequency
25kHz
Lead Free
Lead Free
Linearity
1%
Max Operating Temperature
105°C
Min Operating Temperature
-40°C
Max Supply Current
15mA
Mount
Chassis Mount, Base, Screw
Number of Channels
1
Operating Supply Voltage
15V
Output Voltage
4V
Overall Depth
37mm
Package Quantity
5
Packaging
Tray
Response Time
5us
Series
HAT
Wire/Cable Diameter
30.5mm
Compliance
RoHS
Compliant
Datasheet
LEM HAT200-S Datasheet
Download the complete datasheet for LEM HAT200-S to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

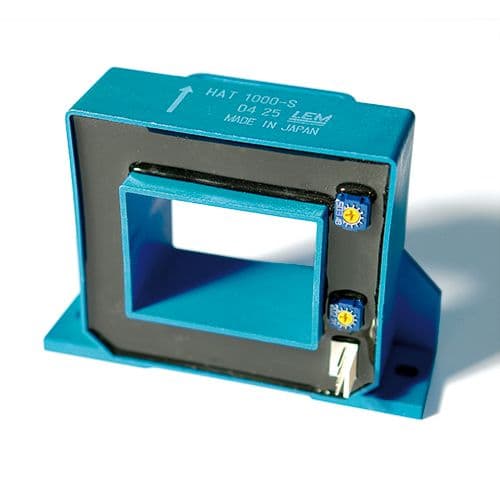

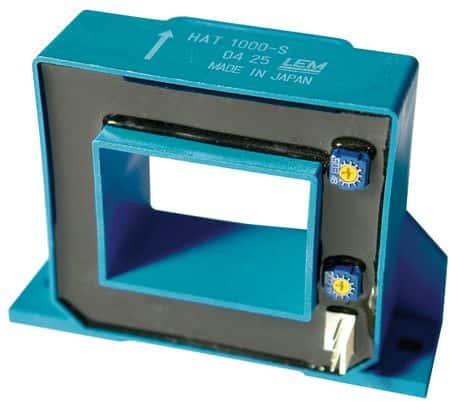

Product Images
