The HLSR 50-SM current sensor module from LEM offers 1% accuracy and a frequency response of 400kHz. It can handle currents up to 50A and operates within a temperature range of -40°C to 105°C. The module is surface mountable and has a maximum supply current of 25mA. It is RoHS compliant and available in a tray packaging.
Frequency400kHz
PackageModule
MountingSurface Mount
Quick Jump:
Chat with Datasheet
Sponsored by
Sign in to ask questions about the LEM HLSR 50-SM datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Technical Specifications
LEM HLSR 50-SM technical specifications.
General
| Accuracy | 1% |
| Package/Case | Module |
| Current Sensing | 50A |
| Frequency | 400kHz |
| Linearity | 0.5% |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Max Supply Current | 25mA |
| Max Supply Voltage (DC) | 5.5V |
| Min Supply Voltage (DC) | 4.5V |
| Mount | Surface Mount |
| Number of Channels | 1 |
| Packaging | Tray |
| Reach SVHC Compliant | No |
| Response Time | 2.5us |
| RoHS Compliant | Yes |
| Sensitivity | 16mV/A |
| Series | HLSR-P |
Compliance
| RoHS | Compliant |
Datasheet
LEM HLSR 50-SM Datasheet
Download the complete datasheet for LEM HLSR 50-SM to view detailed technical specifications.
The embedded preview will load automatically when this section scrolls into view.

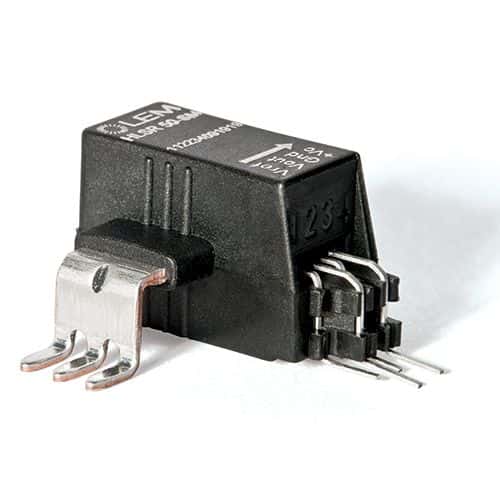

Product Images
