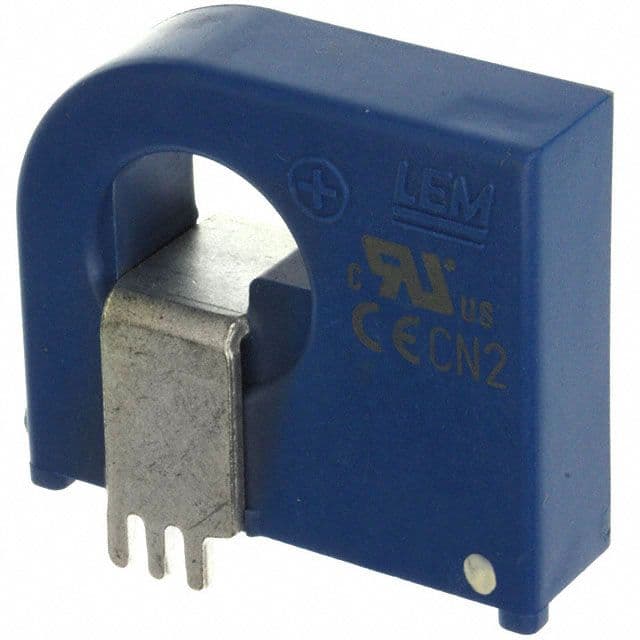

The HTB100-TP current sensor from LEM features 1% accuracy and a maximum operating temperature of 80°C. It is designed for through hole mounting on a PCB and has a maximum supply current of 15mA. The sensor operates within a supply voltage range of 12V to 15V and has a response time of 3us. It is RoHS compliant and available in bulk packaging.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the LEM HTB100-TP datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
LEM HTB100-TP technical specifications.
| Accuracy | 1% |
| Package/Case | 300 |
| Current Sensing | 100A |
| Frequency | 50kHz |
| Linearity | 1% |
| Max Operating Temperature | 80°C |
| Min Operating Temperature | -40°C |
| Max Supply Current | 15mA |
| Max Supply Voltage (DC) | 15V |
| Min Supply Voltage (DC) | 12V |
| Mount | Through Hole, PCB |
| Number of Channels | 1 |
| Operating Supply Voltage | 15V |
| Output Voltage | 4V |
| Overall Depth | 14mm |
| Packaging | Bulk |
| Reach SVHC Compliant | No |
| Response Time | 3us |
| RoHS Compliant | Yes |
| Secondary Current | 300A |
| Series | HTB |
| RoHS | Compliant |
