Frequency240kHz
PackageModule
MountingThrough Hole, PCB, Screw
Quick Jump:
Technical Specifications
LEM HTFS800-P technical specifications.
General
Accuracy
1%
Package/Case
Module
Current Sensing
800A
Flammability Rating
UL94 V-0
Frequency
240kHz
Linearity
0.5%
Max Operating Temperature
105°C
Min Operating Temperature
-40°C
Max Supply Current
25mA
Max Supply Voltage (DC)
5.25V
Min Supply Voltage (DC)
4.75V
Mount
Through Hole, PCB, Screw
Number of Channels
1
Operating Supply Voltage
5V
Overall Depth
17mm
Package Quantity
25
Packaging
Rail/Tube
Reach SVHC Compliant
No
Response Time
3.5us
Series
HTFS
Wire/Cable Diameter
22mm
Compliance
RoHS
Compliant
Datasheet
LEM HTFS800-P Datasheet
Download the complete datasheet for LEM HTFS800-P to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

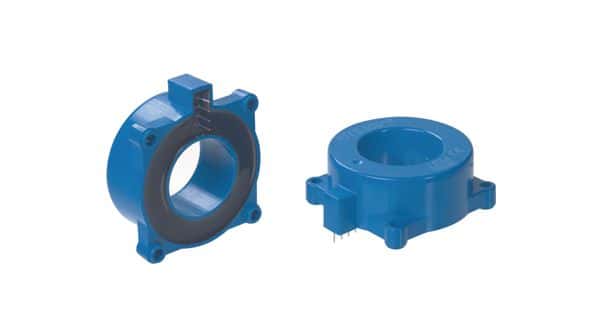

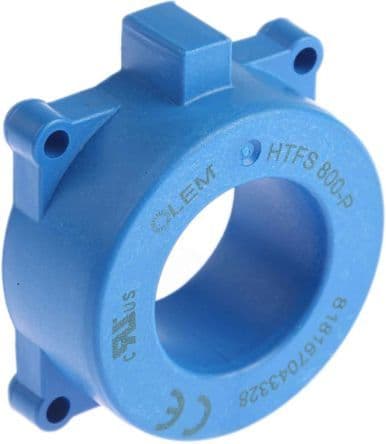

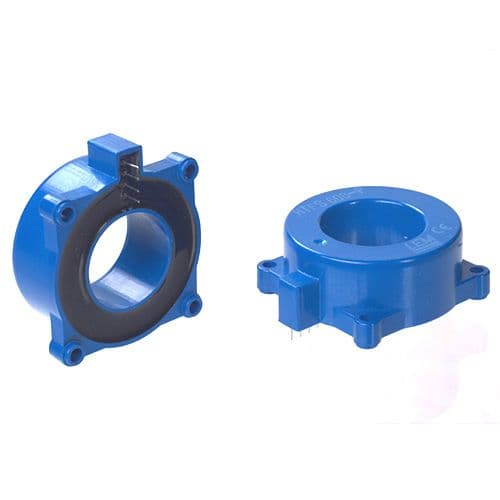

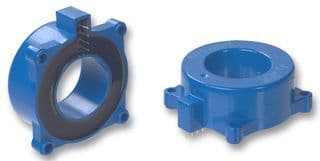

Product Images
