Technical Specifications

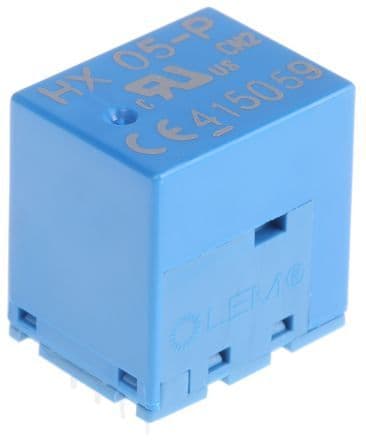

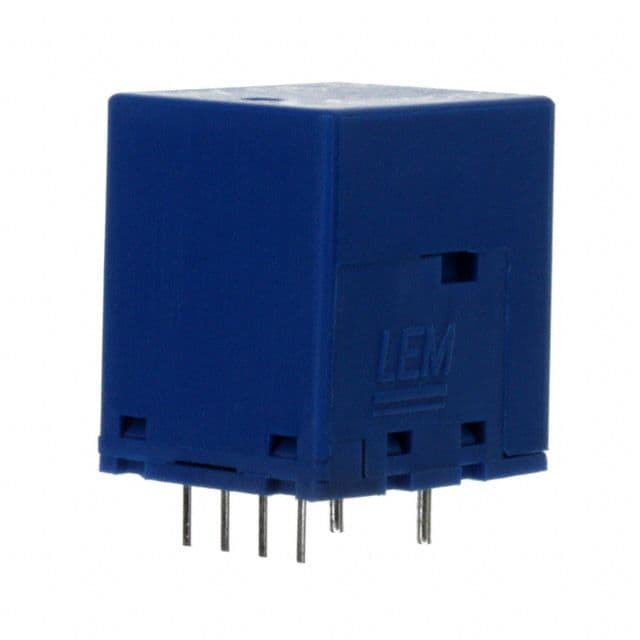

LEM HX05-P technical specifications.
General
Accuracy
1%
Package/Case
Module
Current Sensing
5A
Frequency
50kHz
Height
20mm
Lead Free
Lead Free
Length
19mm
Linearity
1%
Max Operating Temperature
85°C
Min Operating Temperature
-25°C
Max Supply Current
15mA
Mount
Through Hole, PCB
Number of Channels
1
Operating Supply Voltage
15V
Output Voltage
625mV
Overall Depth
15.4mm
Packaging
Tray
Response Time
3us
RoHS Compliant
Yes
Series
HX
Width
15.4mm
Wire/Cable Diameter
0.8mm
Compliance
RoHS
Compliant
Datasheet
LEM HX05-P Datasheet
Download the complete datasheet for LEM HX05-P to view detailed technical specifications.
