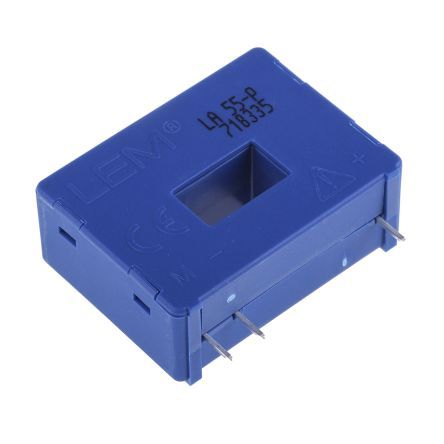

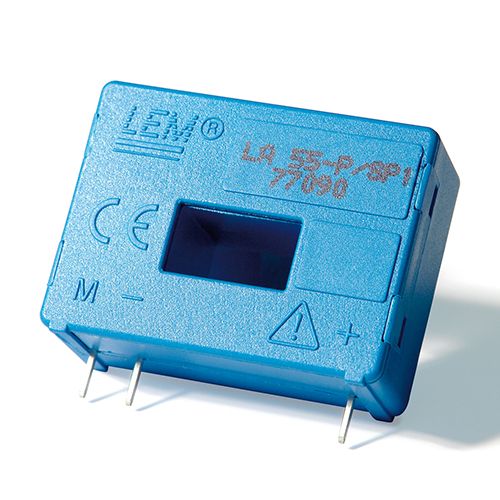

Hall effect current sensor with a 50A nominal sensing range, operating from -70A to 70A. Features 0.65% accuracy and 0.15% linearity, with a 1µs response time and 200kHz frequency response. This through-hole mount component operates on a 12V to 15V DC supply voltage, consuming a maximum of 60mA. It is RoHS compliant and UL94 V-0 rated for flammability.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the LEM LA55-P datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
LEM LA55-P technical specifications.
| Accuracy | 0.65% |
| Current Sensing | 50A |
| Flammability Rating | UL94 V-0 |
| Frequency | 200kHz |
| Height | 27.2mm |
| Lead Free | Lead Free |
| Linearity | 0.15% |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Current | 60mA |
| Max Supply Voltage (DC) | 15V |
| Min Supply Voltage (DC) | -15V |
| Mount | Through Hole, PCB |
| Nominal Supply Current | 50A |
| Number of Channels | 1 |
| Operating Supply Current | 50A |
| Operating Supply Voltage | 15V |
| Overall Depth | 14.45mm |
| Packaging | Bulk |
| Reach SVHC Compliant | No |
| Response Time | 1us |
| RoHS Compliant | Yes |
| Secondary Current | 50mA |
| Sensing Method | Hall Effect |
| Series | LA |
| Width | 36.5mm |
| RoHS | Compliant |
