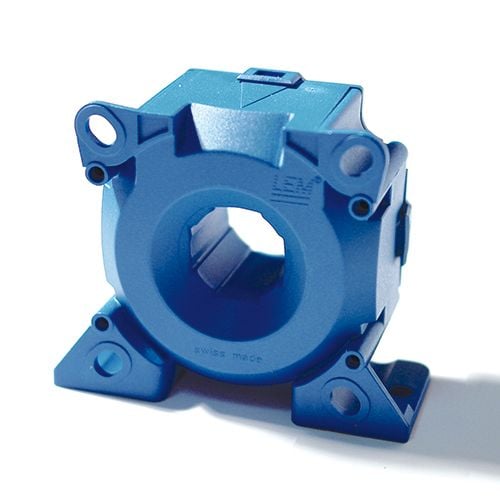

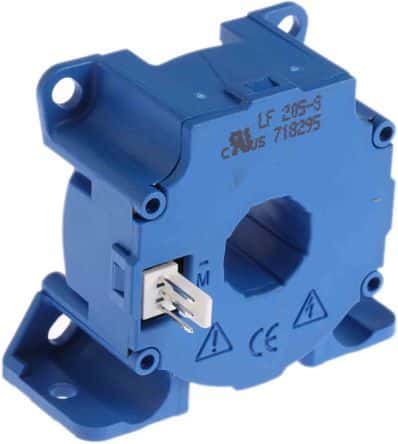

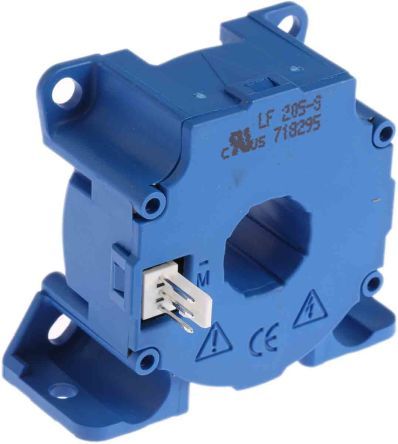

The LF205-S current sensor from LEM features a high accuracy of 0.5% and a maximum operating temperature of 85°C. It can sense currents up to 200A and has a response time of 1us. The sensor is available in a module package and is mounted via screws to a chassis. It operates within a temperature range of -40°C to 85°C and has a maximum supply current of 117mA.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the LEM LF205-S datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Accuracy | 0.5% |
| Package/Case | Module |
| Current Sensing | 200A |
| Frequency | 100kHz |
| Linearity | 0.1% |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Current | 117mA |
| Mount | Chassis Mount, Screw |
| Number of Channels | 1 |
| Package Quantity | 12 |
| Packaging | Tray |
| Reach SVHC Compliant | No |
| Response Time | 1us |
| Secondary Current | 100mA |
| Series | LF |
| RoHS | Compliant |
