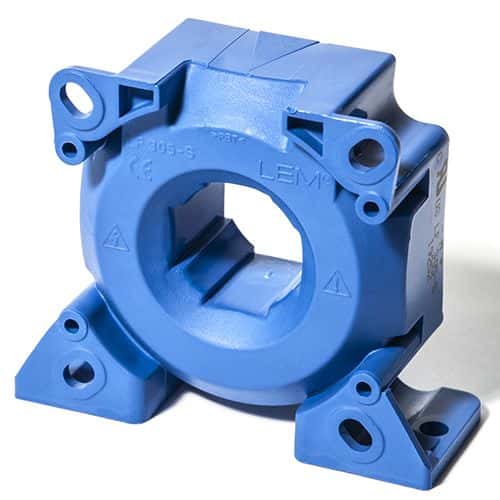

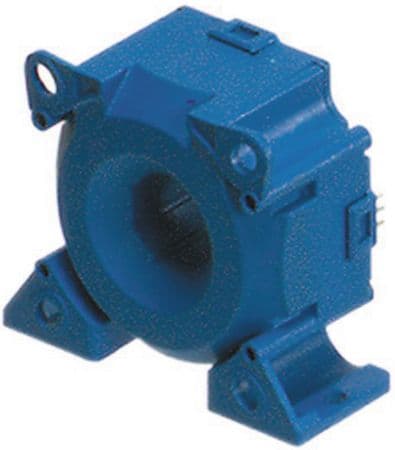

The LF305-S is a general current sensor module from LEM with an accuracy of 0.5%. It can sense currents up to 300A and operates within a temperature range of -40°C to 85°C. The module is powered by a 20V supply and has a maximum supply current of 176mA. It is available in a module package with a chassis mount, panel, or screw mount option.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the LEM LF305-S datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
LEM LF305-S technical specifications.
| Accuracy | 0.5% |
| Package/Case | Module |
| Current Sensing | 300A |
| Frequency | 100kHz |
| Linearity | 0.1% |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Current | 176mA |
| Mount | Chassis Mount, Panel, Screw |
| Number of Channels | 1 |
| Operating Supply Voltage | 20V |
| Overall Depth | 26.6mm |
| Package Quantity | 12 |
| Packaging | Tray |
| Reach SVHC Compliant | No |
| Response Time | 1us |
| Secondary Current | 150mA |
| Series | LF |
| Wire/Cable Diameter | 20.1mm |
| RoHS | Compliant |
