Technical Specifications
LEM LF505-S technical specifications.
General
| Accuracy | 0.6% |
| Package/Case | Module |
| Current Sensing | 500A |
| Frequency | 100kHz |
| Linearity | 0.1% |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -40°C |
| Max Supply Current | 124mA |
| Mount | Chassis Mount, Screw |
| Number of Channels | 1 |
| Packaging | Tray |
| Reach SVHC Compliant | No |
| Response Time | 1us |
| Secondary Current | 100mA |
| Series | LF |
Compliance
| RoHS | Compliant |
Datasheet
LEM LF505-S Datasheet
Download the complete datasheet for LEM LF505-S to view detailed technical specifications.
The embedded preview will load automatically when this section scrolls into view.

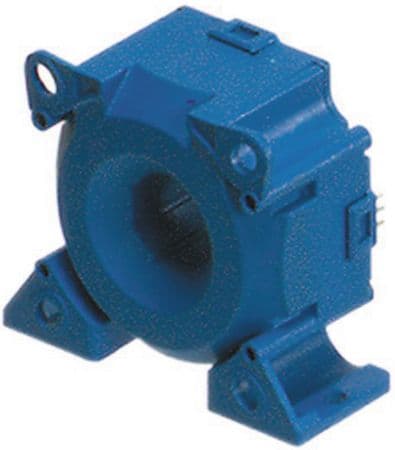

Product Images
