Littelfuse
0251.375HAT1L
Fuse Subminiature Very Fast Acting 0.375A 125V Axial 2.8 X 7.11mm Ceramic Ammo Medical CSA/UL
PackageAxial
Current Rating375mA
MountingThrough Hole
Quick Jump:
Technical Specifications
Littelfuse 0251.375HAT1L technical specifications.
General
| Approvals | UL, CSA, QPL, UR |
| Package/Case | Axial |
| Current Rating | 375mA |
| DC Cold Resistance | 395mR |
| Length | 7.11mm |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Through Hole |
| Package Quantity | 100 |
| Packaging | Ammo Pack |
| RoHS Compliant | Yes |
| Series | PICO® II 251 |
| Termination | Axial |
| Voltage Rating (AC) | 125V |
| DC Rated Voltage | 125V |
Compliance
| RoHS | Compliant |
Datasheet
Littelfuse 0251.375HAT1L Datasheet
Download the complete datasheet for Littelfuse 0251.375HAT1L to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

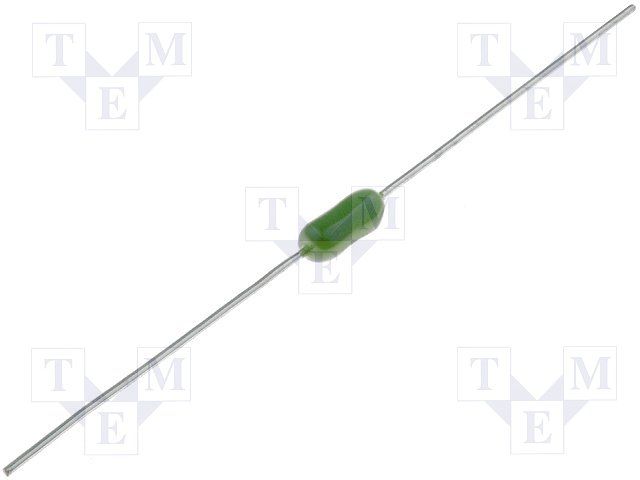

Product Images
