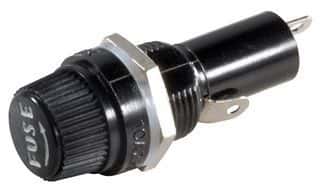

Illuminated fuse holder for 10A, 250V AC/DC circuits. Features a black thermoplastic body with a copper alloy, tin-plated contact for reliable connection. Designed for panel mounting with quick connect termination and a 15.3mm diameter. Accommodates fuses up to 0.177" x 0.57" and operates within a -40°C to 85°C temperature range.
Voltage250V
Voltage Rating250V
Current Rating10A
MountingPanel
Quick Jump:
Technical Specifications
Littelfuse 03452LF2H technical specifications.
General
| Color | Black |
| Contact Material | Copper Alloy |
| Contact Plating | Tin |
| Current Rating | 10A |
| Diameter | 15.3mm |
| Fuse Current | 10A |
| Fuse Size | 0.177 Dia x 0.57 L (4.5mm x 14.48mm) |
| Illumination Type | Illuminated |
| Lead Free | Lead Free |
| Length | 50.8mm |
| Material | Thermoplastic |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Panel |
| Number of Circuits | 1 |
| Number of Poles | 1 |
| Package Quantity | 100 |
| Packaging | Bulk |
| Reach SVHC Compliant | No |
| Series | 345 |
| Termination | Quick Connect |
| Voltage | 250V |
| Voltage Rating | 250V |
| Voltage Rating (AC) | 250V |
| DC Rated Voltage | 250V |
Compliance
| RoHS | Compliant |
