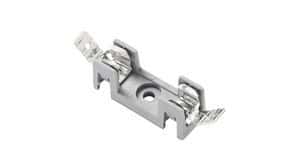

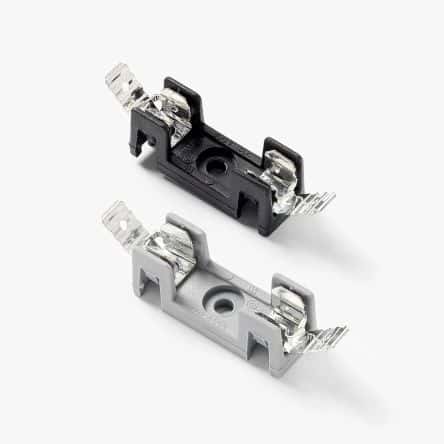

15A, 600V fuse block for PCB mounting, featuring a single circuit and pole with horizontal orientation. Constructed with a grey thermoplastic body and bronze, tin-plated contacts, this component supports fuse sizes of 0.25" Dia x 1.26" L (6.35mm x 32mm). Operating temperature range is -40°C to 85°C, with a UL94 V-0 flammability rating. Termination is via PC pin, and the unit is lead-free.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Littelfuse 03540101ZXGY datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Littelfuse 03540101ZXGY technical specifications.
| Body Material | Bronze, Tin |
| Package/Case | 300 |
| Color | Grey |
| Contact Material | Bronze |
| Contact Plating | Tin |
| Current Rating | 15A |
| Depth | 35.56mm |
| Flammability Rating | UL94 V-0 |
| Fuse Current | 15A |
| Fuse Size | 0.25 Dia x 1.26 L (6.35mm x 32mm) |
| Lead Free | Lead Free |
| Length | 12.7mm |
| Material | Thermoplastic |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole |
| Number of Circuits | 1 |
| Number of Poles | 1 |
| Orientation | Horizontal |
| Package Quantity | 50 |
| Packaging | Bulk |
| Reach SVHC Compliant | No |
| Series | OMNI-BLOK® 354 |
| Termination | PC Pin |
| Voltage | 600V |
| Voltage Rating | 300V |
| Voltage Rating (AC) | 300V |
| DC Rated Voltage | 300V |
| Width | 12.7mm |
| RoHS | Compliant |
