Surface mount PTC resettable fuse with 9V DC rated voltage and 200mA hold current. Features a 3.5 Ohm resistance and 500mA trip current, with a maximum current rating of 40A. Encased in a 0603 (1608 metric) surface mount package, measuring 1.8mm length, 1mm width, and 0.75mm height. Operates within a temperature range of -40°C to 85°C, with 500mW power dissipation. Approvals include cULus and TUV, and the component is Halogen Free and RoHS Compliant.
Package0603
Resistance3.5R
MountingSurface Mount
Power500mW
Quick Jump:
Technical Specifications
Littelfuse 0603L020YR technical specifications.
General
| Approvals | cULus, TUV |
| Case Code (Imperial) | 0603 |
| Case Code (Metric) | 1608 |
| Package/Case | 0603 |
| Height | 0.75mm |
| Hold Current | 200mA |
| Length | 1.8mm |
| Max Current Rating | 40A |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 500mW |
| Mount | Surface Mount |
| Operating Supply Voltage | 9V |
| Package Quantity | 4000 |
| Packaging | Tape and Reel |
| Power Dissipation | 500mW |
| Reach SVHC Compliant | No |
| Resistance | 3.5R |
| RoHS Compliant | Yes |
| Series | 0603L |
| Termination | SMD/SMT |
| Time to Trip | 600ms |
| Trip Current | 500mA |
| DC Rated Voltage | 9V |
| Width | 1mm |
Compliance
| RoHS | Compliant |
Datasheet
Littelfuse 0603L020YR Datasheet
Download the complete datasheet for Littelfuse 0603L020YR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

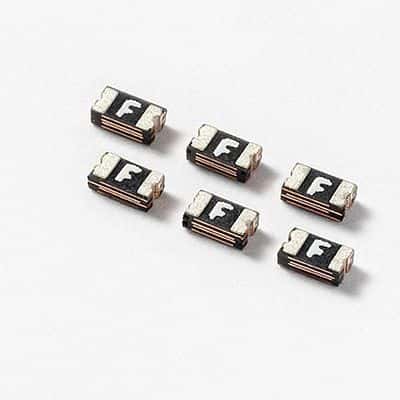

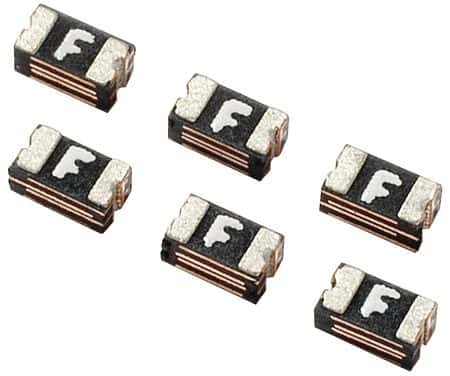

Product Images
