Surface mount PTC resettable fuse, 0603 case code (1608 metric), designed for overcurrent protection. Features a 1A hold current, 1.8A trip current, and 6V DC rated voltage. Offers 210mΩ resistance and a maximum power dissipation of 600mW. Operates within a temperature range of -40°C to 85°C. Packaged in tape and reel for automated assembly.
Package0603
Resistance210mR
MountingSurface Mount
Power600mW
Quick Jump:
Technical Specifications
Littelfuse 0603L100SLYR technical specifications.
General
| Case Code (Imperial) | 0603 |
| Case Code (Metric) | 1608 |
| Package/Case | 0603 |
| Height | 0.75mm |
| Hold Current | 1A |
| Lead Free | Lead Free |
| Length | 1.8mm |
| Max Current Rating | 50A |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 600mW |
| Mount | Surface Mount |
| Operating Supply Voltage | 6V |
| Package Quantity | 4000 |
| Packaging | Tape and Reel |
| Power Dissipation | 600mW |
| Reach SVHC Compliant | Unknown |
| Resistance | 210mR |
| RoHS Compliant | Yes |
| Series | POLY-FUSE®, LoRho |
| Termination | SMD/SMT |
| Time to Trip | 300ms |
| Trip Current | 1.8A |
| DC Rated Voltage | 6V |
| Width | 1mm |
Compliance
| RoHS | Compliant |
Datasheet
Littelfuse 0603L100SLYR Datasheet
Download the complete datasheet for Littelfuse 0603L100SLYR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

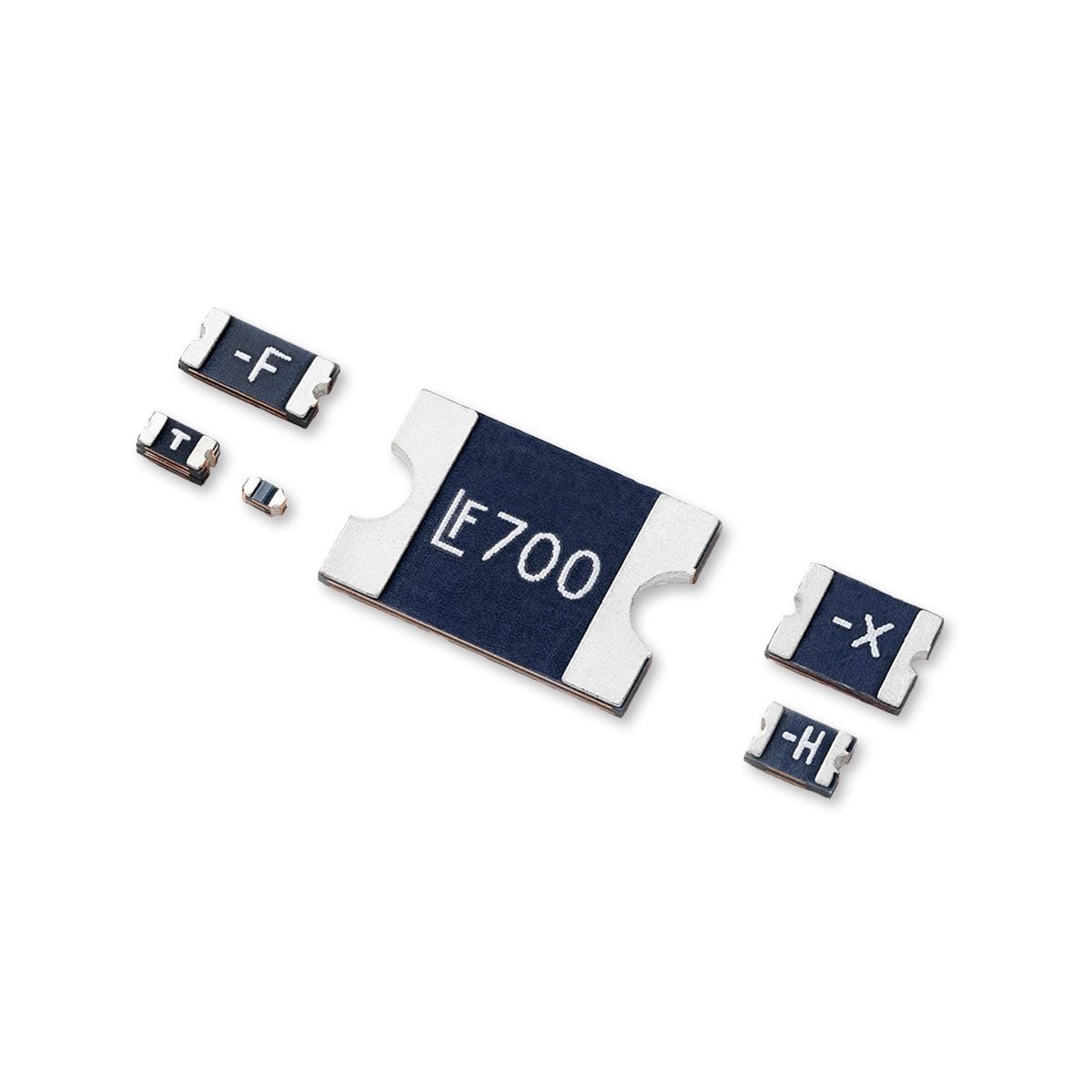

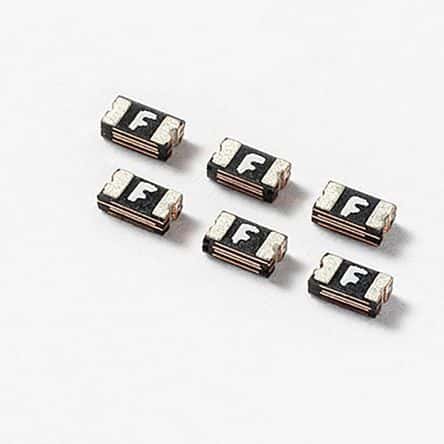

Product Images
