Unidirectional TVS diode for surge suppression, featuring a 94V reverse standoff voltage and 105V minimum breakdown voltage. This component offers a 152V clamping voltage and handles a 10A peak pulse current with 1.5kW peak pulse power. Designed for through-hole mounting with axial termination, it operates within a temperature range of -55°C to 175°C and is RoHS compliant.
PackageDO-201
MountingThrough Hole
PolarityUnidirectional
Quick Jump:
Technical Specifications
Littelfuse 1.5KE110A technical specifications.
General
| Package/Case | DO-201 |
| Clamping Voltage | 152V |
| Diameter | 5.3mm |
| Diode Type | ZENER |
| Lead Free | Lead Free |
| Leakage Current | 1uA |
| Length | 9.5mm |
| Min Breakdown Voltage | 105V |
| Max Operating Temperature | 175°C |
| Min Operating Temperature | -55°C |
| Max Surge Current | 10A |
| Mount | Through Hole |
| Number of Channels | 1 |
| Number of Elements | 1 |
| Number of Unidirectional Channels | 1 |
| Operating Supply Voltage | 94V |
| Package Quantity | 1200 |
| Packaging | Tape and Reel |
| Peak Pulse Current | 10A |
| Peak Pulse Power | 1.5kW |
| Polarity | Unidirectional |
| Power Line Protection | No |
| Reverse Breakdown Voltage | 105V |
| Reverse Standoff Voltage | 94V |
| RoHS Compliant | Yes |
| Series | 1.5KE |
| Termination | Axial |
Compliance
| RoHS | Compliant |
Datasheet
Littelfuse 1.5KE110A Datasheet
Download the complete datasheet for Littelfuse 1.5KE110A to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

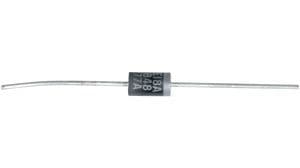

Product Images
