Bidirectional transient voltage suppressor diode with 1.5kW peak pulse power and 214V reverse standoff voltage. Features a 344V clamping voltage and 263V maximum breakdown voltage. Designed for through-hole mounting in a DO-201 plastic package, operating from -55°C to 175°C. This silicon diode offers 4.4A peak pulse current and is RoHS compliant.
PackageDO-201
MountingThrough Hole
PolarityBidirectional
Power1.5kW
Quick Jump:
Technical Specifications
Littelfuse 1.5KE250CA-B technical specifications.
General
| Package/Case | DO-201 |
| Clamping Voltage | 344V |
| Clamping Voltage-Max | 344V |
| Diameter | 5.3mm |
| Diode Type | ZENER |
| Direction | Bidirectional |
| Lead Free | Lead Free |
| Length | 9.5mm |
| Max Breakdown Voltage | 263V |
| Min Breakdown Voltage | 237V |
| Max Operating Temperature | 175°C |
| Min Operating Temperature | -55°C |
| Max Surge Current | 4.4A |
| Mount | Through Hole |
| Number of Bidirectional Channels | 1 |
| Number of Channels | 1 |
| Operating Supply Voltage | 214V |
| Package Quantity | 500 |
| Packaging | Bulk |
| Peak Pulse Current | 4.4A |
| Peak Pulse Power | 1.5kW |
| Polarity | Bidirectional |
| Power Dissipation | 1.5kW |
| Power Line Protection | No |
| Reverse Standoff Voltage | 214V |
| RoHS Compliant | Yes |
| Series | 1.5KE |
| Termination | Axial |
| DC Rated Voltage | 250V |
Compliance
| RoHS | Compliant |
Datasheet
Littelfuse 1.5KE250CA-B Datasheet
Download the complete datasheet for Littelfuse 1.5KE250CA-B to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

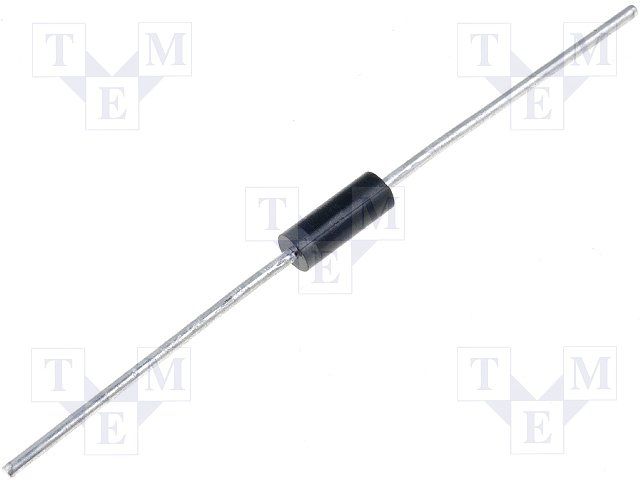

Product Images
