Bidirectional TVS Diode for surge suppression. Features a 43.6V reverse standoff voltage and 48.5V minimum breakdown voltage. Offers a 70.1V clamping voltage with a 1.5kW peak pulse power rating and 21.7A peak pulse current handling. Housed in a DO-201 axial package, this lead-free component operates from -55°C to 175°C with a 6.5W power dissipation.
PackageDO-201
MountingThrough Hole
PolarityBidirectional
Power1.5kW
Quick Jump:
Technical Specifications
Littelfuse 1.5KE51CA technical specifications.
General
Package/Case
DO-201
Clamping Voltage
70.1V
Clamping Voltage-Max
70.1V
Diameter
5.3mm
Diode Type
ZENER
Direction
Bidirectional
Lead Free
Lead Free
Leakage Current
1uA
Length
9.5mm
Max Breakdown Voltage
53.6V
Min Breakdown Voltage
48.5V
Max Operating Temperature
175°C
Min Operating Temperature
-55°C
Max Power Dissipation
6.5W
Max Surge Current
21.7A
Mount
Through Hole
Number of Bidirectional Channels
1
Number of Channels
1
Number of Elements
1
Operating Supply Voltage
43.6V
Package Quantity
1200
Packaging
Tape and Reel
Peak Pulse Current
21.7A
Peak Pulse Power
1.5kW
Polarity
Bidirectional
Power Dissipation
1.5kW
Power Line Protection
No
Radiation Hardening
No
Reach SVHC Compliant
No
Reverse Breakdown Voltage
48.5V
Reverse Standoff Voltage
43.6V
RoHS Compliant
Yes
Series
1.5KE
Termination
Axial
Compliance
RoHS
Compliant
Datasheet
Littelfuse 1.5KE51CA Datasheet
Download the complete datasheet for Littelfuse 1.5KE51CA to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

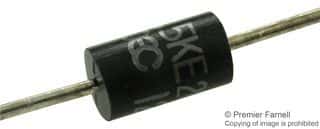

Product Images
