Technical Specifications
Littelfuse 1.5SMC43CA technical specifications.
General
| Diode Type | ZENER |
| Height | 2.62mm |
| Lead Free | Lead Free |
| Length | 8.13mm |
| Max Breakdown Voltage | 45.2V |
| Min Breakdown Voltage | 40.9V |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Reverse Leakage Current | 1uA |
| Mount | Surface Mount |
| Number of Bidirectional Channels | 1 |
| Packaging | Cut Tape |
| Peak Pulse Current | 25.6A |
| Peak Pulse Power | 1.5kW |
| Power Line Protection | No |
| Reverse Standoff Voltage | 36.8V |
| Reverse Voltage | 36.8V |
| RoHS Compliant | Yes |
| Series | 1.5SMC |
| DC Rated Voltage | 43V |
| Width | 6.22mm |
Compliance
| RoHS | Compliant |
Datasheet
Littelfuse 1.5SMC43CA Datasheet
Download the complete datasheet for Littelfuse 1.5SMC43CA to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

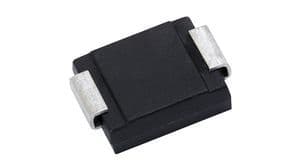

Product Images
