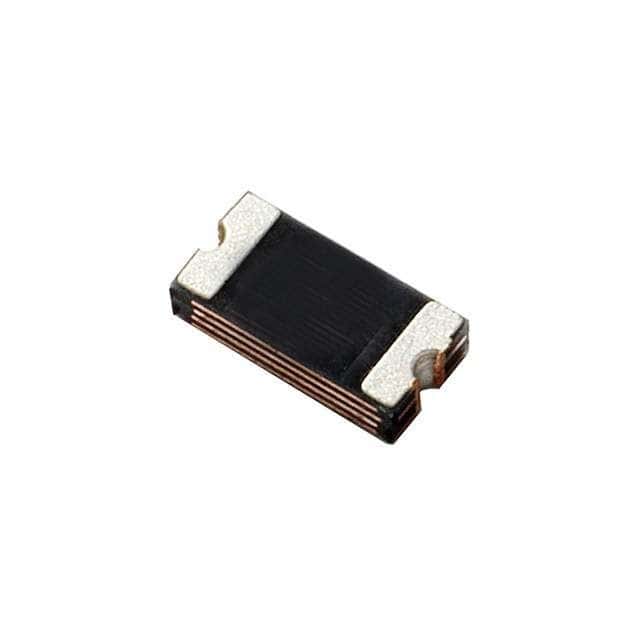

Surface mount PTC resettable fuse with 1.1A hold current and 2.2A trip current. Features a 6V DC rated voltage, 100A maximum interrupt current, and 0.8W power dissipation. Encased in a 1206 (3216 metric) SMD package with solder pad termination, operating between -40°C and 85°C. Delivered in tape and reel packaging.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Littelfuse 1206L110WR datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Case Code (Imperial) | 1206 |
| Case Code (Metric) | 3216 |
| Package/Case | 1206 |
| Current Rating | 100A |
| Height | 1mm |
| Hold Current | 1.1A |
| Lead Free | Lead Free |
| Length | 3.15mm |
| Max Current Rating | 100A |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 800mW |
| Mount | Surface Mount |
| Operating Supply Voltage | 6V |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Reach SVHC Compliant | No |
| Resistance | 180mR |
| RoHS Compliant | No |
| Series | 1206L |
| Termination | SMD/SMT |
| Time to Trip | 100ms |
| Trip Current | 2.2A |
| DC Rated Voltage | 6V |
| Width | 3.4mm |
| RoHS | Not Compliant |
