Surface mount resettable fuse, 1812 case code, featuring a 2A hold current and 3.5A trip current. Offers 8V DC rated voltage and 100A maximum current rating with 800mW power dissipation. Operates within a temperature range of -40°C to 85°C. Lead-free and RoHS compliant, with cULus and TUV approvals.
Package1812
Resistance70mR
Voltage Rating8V
Current Rating100A
Quick Jump:
Technical Specifications
Littelfuse 1812L200THPR technical specifications.
General
| Approvals | cULus, TUV |
| Case Code (Imperial) | 1812 |
| Case Code (Metric) | 4532 |
| Package/Case | 1812 |
| Current Rating | 100A |
| Hold Current | 2A |
| Lead Free | Lead Free |
| Max Current Rating | 100A |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 800mW |
| Max Voltage Rating (DC) | 8V |
| Mount | Surface Mount |
| Operating Supply Voltage | 8V |
| Package Quantity | 2000 |
| Packaging | Tape and Reel |
| Power Dissipation | 800mW |
| Reach SVHC Compliant | Unknown |
| Resistance | 70mR |
| RoHS Compliant | Yes |
| Series | 1812L |
| Termination | SMD/SMT |
| Time to Trip | 2s |
| Trip Current | 3.5A |
| DC Rated Voltage | 8V |
| Working Voltage | 8V |
Compliance
| RoHS | Compliant |
Datasheet
Littelfuse 1812L200THPR Datasheet
Download the complete datasheet for Littelfuse 1812L200THPR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

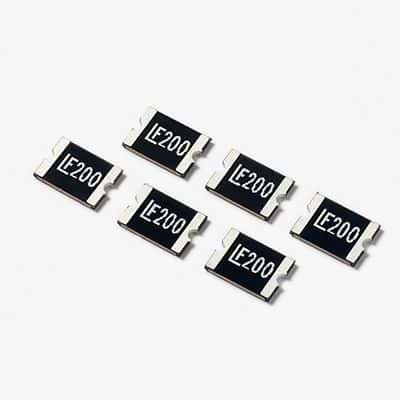

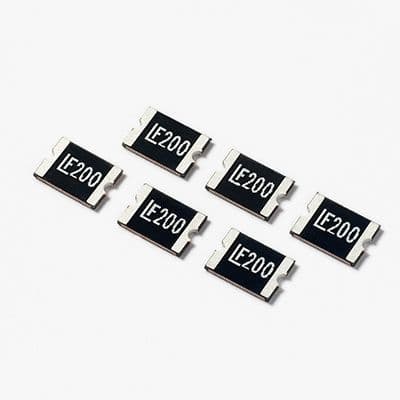

Product Images
