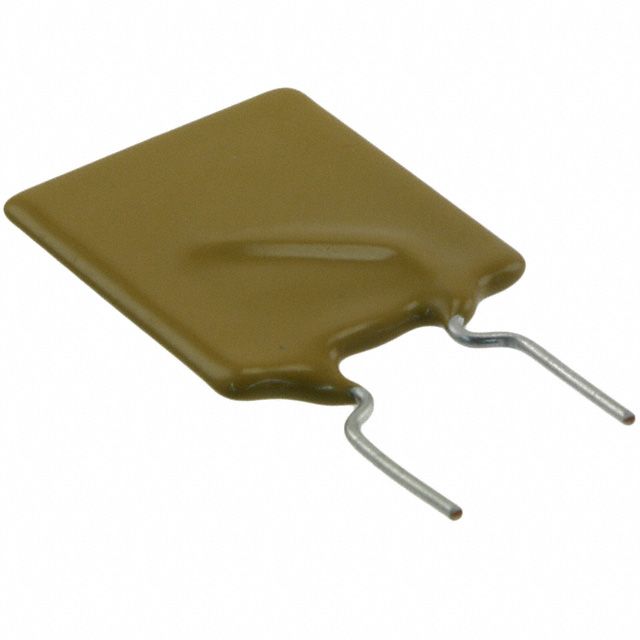

Radial resettable fuse with 7A hold current and 30V DC rating, designed for through-hole mounting. Features low 30mΩ resistance and a 40A maximum current rating, suitable for operation between -40°C and 85°C. This component offers 3.8W power dissipation and is RoHS compliant, with cULus and TUV approvals.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Littelfuse 30R700UF datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Approvals | cULus, TUV |
| Package/Case | Radial |
| Current Rating | 40A |
| Height | 26.7mm |
| Hold Current | 7A |
| Lead Free | Lead Free |
| Max Current Rating | 40A |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Voltage Rating (DC) | 30V |
| Operating Supply Voltage | 30V |
| Package Quantity | 200 |
| Packaging | Bulk |
| Power Dissipation | 3.8W |
| Reach SVHC Compliant | Unknown |
| Resistance | 30mR |
| RoHS Compliant | Yes |
| Series | POLY-FUSE®, 30R |
| Size | 3mm |
| Termination | Radial |
| Thickness | 3.05mm |
| Time to Trip | 17.5s |
| Trip Current | 14A |
| DC Rated Voltage | 30V |
| Width | 19.1mm |
| Working Voltage | 30V |
| RoHS | Compliant |
