Fast-acting radial fuse with a 1A current rating and 250VAC voltage rating. Features a 35A interrupting rating, 67.6mR resistance, and 310mW power dissipation. Constructed with a polyamide and thermoplastic body, copper contacts with tin plating, and a brown color. Through-hole mounting with a 0.6mm wire diameter. Approvals include VDE, cULus, CCC, PSE, and SEMKO. Operating temperature range is -40°C to 85°C.
PackageRadial
Storage8mm
Resistance67.6mR
Voltage Rating250V
Quick Jump:
Technical Specifications
Littelfuse 37011000410 technical specifications.
General
Approvals
VDE, cULus, CCC, PSE, SEMKO
Body Diameter
8.5mm
Body Height
8mm
Body Material
Polyamide, Thermoplastic
Package/Case
Radial
Color
Brown
Contact Material
Copper
Contact Plating
Tin
Current Rating
1A
Flammability Rating
UL94 V-0
Fuse Current
1A
Lead Free
Lead Free
Length
8mm
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
310mW
Mount
Through Hole
Package Quantity
1000
Packaging
Bulk
Power Dissipation
310mW
Radiation Hardening
No
Reach SVHC Compliant
Unknown
Resistance
67.6mR
RoHS Compliant
Yes
Series
370
Size
8mm
Termination
Radial
Voltage Rating
250V
Voltage Rating (AC)
250V
DC Rated Voltage
250V
Wire/Cable Diameter
0.6mm
Working Voltage
250V
Compliance
RoHS
Compliant
Datasheet
Littelfuse 37011000410 Datasheet
Download the complete datasheet for Littelfuse 37011000410 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

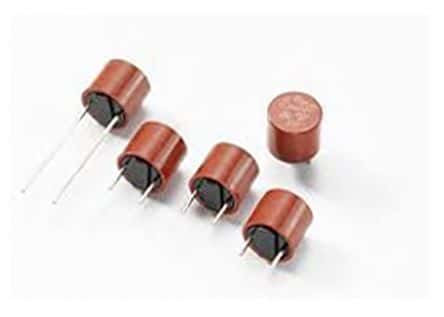

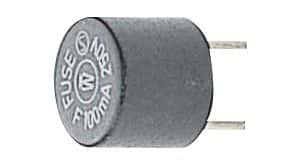

Product Images
