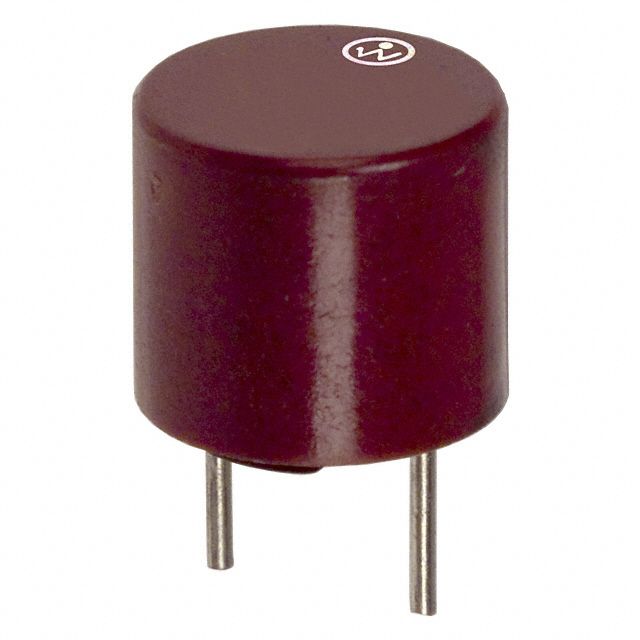

Subminiature slow-blow fuse with a 40mA current rating and 250V AC working voltage. Features a radial package with a 5.08mm lead pitch and 4.3mm lead length, housed in a polyamide body with UL94 V-0 flammability. Operates across a -40°C to 85°C temperature range, with a DC cold resistance of 10.165 Ohms. This RoHS compliant component is designed for through-hole mounting and is supplied in bulk packaging.
PackageRadial
Current40mA
Storage8mm
Voltage Rating250V
Quick Jump:
Technical Specifications
Littelfuse 37200400431 technical specifications.
General
| Blow Characteristic | TIME DELAY |
| Body Material | Polyamide, Thermoplastic |
| Package/Case | Radial |
| Current | 40mA |
| Current Rating | 40mA |
| DC Cold Resistance | 10.165R |
| Diameter | 8.5mm |
| Flammability Rating | UL94 V-0 |
| Fuse Current | 40mA |
| Lead Free | Lead Free |
| Lead Length | 4.3mm |
| Lead Pitch | 5.08mm |
| Length | 0.315inch |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole |
| Package Quantity | 200 |
| Packaging | Bulk |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | TR5® 372 |
| Size | 8mm |
| Termination | Radial |
| Voltage Rating (AC) | 250V |
| Working Voltage | 250V |
Compliance
| RoHS | Compliant |
