Subminiature slow-blow fuse, 63mA at 250V, featuring a radial package with 8.5mm diameter and 8mm length. This thermoplastic fuse boasts a UL94 V-0 flammability rating and operates within a -40°C to 85°C temperature range. It is RoHS compliant and available in an ammo pack for efficient handling. Key approvals include VDE, cULus, CCC, SEMKO, and KC.
PackageRadial
Storage8mm
Voltage Rating250V
Current Rating63mA
Quick Jump:
Technical Specifications
Littelfuse 37200630001 technical specifications.
General
| Approvals | VDE, cULus, CCC, SEMKO, KC |
| Blow Characteristic | TIME DELAY |
| Body Material | Thermoplastic |
| Package/Case | Radial |
| Color | Brown |
| Current Rating | 63mA |
| DC Cold Resistance | 3.8R |
| Diameter | 8.5mm |
| Flammability Rating | UL94 V-0 |
| Fuse Current | 63mA |
| Height | 0.315inch |
| Lead Free | Lead Free |
| Lead Length | 18.8mm |
| Length | 8mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole |
| Package Quantity | 1000 |
| Packaging | Ammo Pack |
| Power Dissipation | 80mW |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | TR5® 372 |
| Size | 8mm |
| Termination | Radial |
| Voltage Rating | 250V |
| Voltage Rating (AC) | 250V |
| Width | 8.5mm |
| Working Voltage | 250V |
Compliance
| RoHS | Compliant |
Datasheet
Littelfuse 37200630001 Datasheet
Download the complete datasheet for Littelfuse 37200630001 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

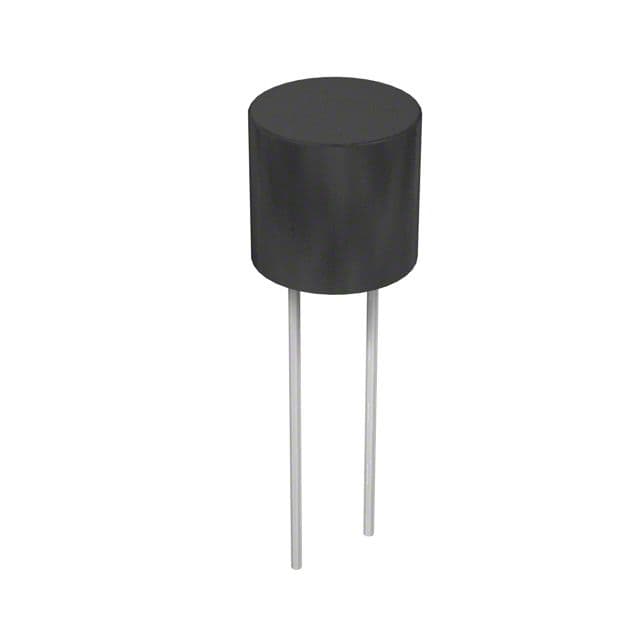

Product Images
