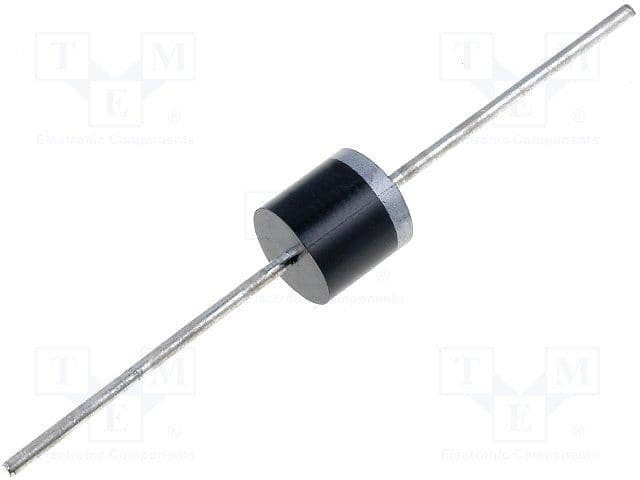

Bidirectional Transient Voltage Suppressor (TVS) diode offering 5kW peak pulse power and 205A max surge current. Features a 15V reverse standoff voltage and 24.4V clamping voltage. This silicon component operates from -55°C to 175°C and is housed in a plastic package with axial termination for through-hole mounting. It is HALOGEN FREE, ROHS COMPLIANT, and lead-free.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Littelfuse 5KP15CA-B datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | P |
| Clamping Voltage | 24.4V |
| Diameter | 9.1mm |
| Diode Type | ZENER |
| Lead Free | Lead Free |
| Length | 9.1mm |
| Min Breakdown Voltage | 16.7V |
| Max Operating Temperature | 175°C |
| Min Operating Temperature | -55°C |
| Max Surge Current | 205A |
| Mount | Through Hole |
| Number of Bidirectional Channels | 1 |
| Number of Channels | 1 |
| Operating Supply Voltage | 15V |
| Package Quantity | 100 |
| Packaging | Bulk |
| Peak Pulse Current | 209A |
| Peak Pulse Power | 5kW |
| Polarity | Bidirectional |
| Power Line Protection | No |
| Reverse Standoff Voltage | 15V |
| RoHS Compliant | Yes |
| Series | 5KP |
| Termination | Axial |
| DC Rated Voltage | 15V |
| RoHS | Compliant |
