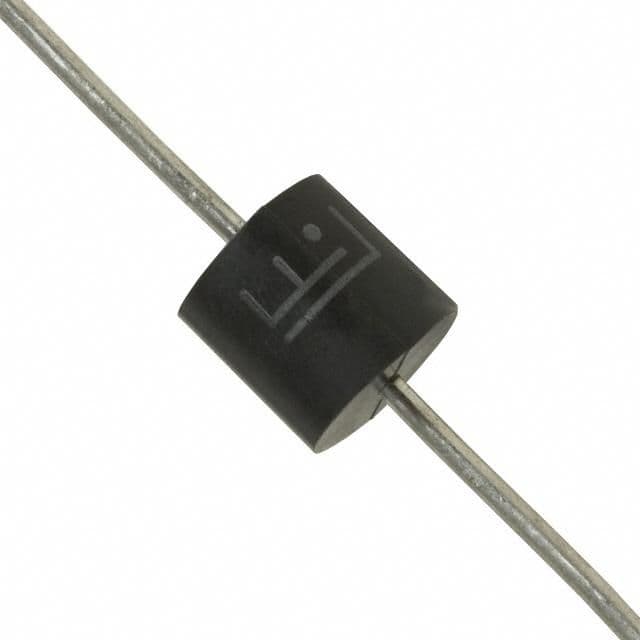

Unidirectional TVS diode for power line protection, featuring an 18V reverse standoff voltage and 20V minimum breakdown voltage. This component offers a 29.2V clamping voltage and handles a peak pulse power of 5kW with a maximum surge current of 172A. Designed for through-hole mounting with axial termination, it operates within a temperature range of -55°C to 175°C and has a maximum power dissipation of 8W.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Littelfuse 5KP18A datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Littelfuse 5KP18A technical specifications.
| Package/Case | P |
| Clamping Voltage | 29.2V |
| Clamping Voltage-Max | 29.2V |
| Diameter | 9.1mm |
| Diode Type | ZENER |
| Direction | Unidirectional |
| Lead Free | Lead Free |
| Leakage Current | 2uA |
| Length | 9.1mm |
| Max Breakdown Voltage | 22.1V |
| Min Breakdown Voltage | 20V |
| Max Operating Temperature | 175°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 8W |
| Max Surge Current | 172A |
| Mount | Through Hole |
| Number of Channels | 1 |
| Number of Elements | 1 |
| Number of Unidirectional Channels | 1 |
| Operating Supply Voltage | 18V |
| Package Quantity | 800 |
| Packaging | Tape and Reel |
| Peak Pulse Current | 174.7A |
| Peak Pulse Power | 5kW |
| Polarity | Unidirectional |
| Power Dissipation | 5kW |
| Power Line Protection | No |
| Reach SVHC Compliant | No |
| Reverse Breakdown Voltage | 20V |
| Reverse Standoff Voltage | 18V |
| RoHS Compliant | Yes |
| Series | 5KP |
| Termination | Axial |
| RoHS | Compliant |
