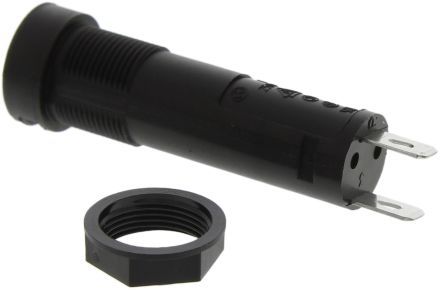

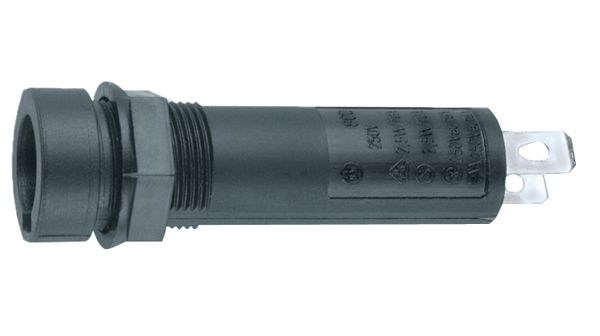

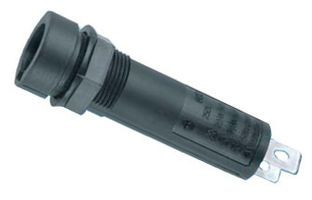

Panel mount fuse holder with a 250V voltage rating and 16A current rating. Features quick connect termination and a single pole, single circuit design. Constructed from black polyamide with copper alloy, tin-plated contacts. Rated IP40 and UL94 V-0 for flammability, operating between -25°C and 70°C. Accommodates 0.25 Dia x 1.26 L (6.35mm x 32mm) and 5mm x 20mm fuse sizes.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Littelfuse 80000000005 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Littelfuse 80000000005 technical specifications.
| Body Material | Polyamide |
| Color | Black |
| Contact Material | Copper Alloy, Tin |
| Contact Plating | Tin |
| Current Rating | 16A |
| Depth | 16mm |
| Diameter | 15mm |
| Flammability Rating | UL94 V-0 |
| Fuse Current | 16A |
| Fuse Size | 0.25 Dia x 1.26 L (6.35mm x 32mm), 5mm x 20mm |
| Illumination Type | Illuminated |
| Lead Free | Lead Free |
| Length | 45.7mm |
| Material | Thermoplastic |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -25°C |
| Mount | Panel |
| Number of Circuits | 1 |
| Number of Poles | 1 |
| Package Quantity | 100 |
| Packaging | Bulk |
| Power Dissipation | 2.5W |
| Ratings | IP40 |
| Reach SVHC Compliant | Unknown |
| Series | 800 |
| Termination | Quick Connect |
| Voltage | 250V |
| Voltage Rating | 250V |
| Voltage Rating (AC) | 250V |
| DC Rated Voltage | 250V |
| RoHS | Compliant |
