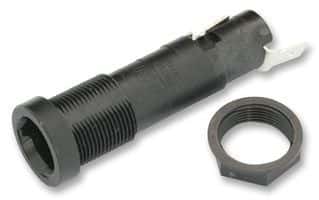

Panel mount fuse holder with quick connect termination, rated for 250V AC/DC and 20A. Features a black, tin-plated copper alloy contact material and accommodates 5x20mm or 6.3x32mm fuses. Operates within a temperature range of -40°C to 85°C, with a 15mm diameter and 53.7mm length. This illuminated, single-pole, single-circuit accessory is lead-free.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Littelfuse 86000001009 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Color | Black |
| Contact Material | Copper Alloy |
| Contact Plating | Tin |
| Current Rating | 20A |
| Diameter | 15mm |
| Fuse Current | 20A |
| Fuse Size | 5x20mm or 6.3x32mm |
| Illumination Type | Illuminated |
| Lead Free | Lead Free |
| Length | 53.7mm |
| Material | Tin |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Panel |
| Number of Circuits | 1 |
| Number of Poles | 1 |
| Package Quantity | 100 |
| Packaging | Bulk |
| Reach SVHC Compliant | No |
| Series | 860 |
| Termination | Quick Connect |
| Voltage | 250V |
| Voltage Rating | 250V |
| Voltage Rating (AC) | 250V |
| DC Rated Voltage | 250V |
| RoHS | Compliant |
