Gas Discharge Tubes 470VDC 1pF Axial Thru-Hole
PackageAxial
Capacitance1pF
Voltage Rating470V
MountingThrough Hole, Axial
Quick Jump:
Chat with Datasheet
Sponsored by
Sign in to ask questions about the Littelfuse CG2470L datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Technical Specifications
Littelfuse CG2470L technical specifications.
General
| Capacitance | 1pF |
| Package/Case | Axial |
| Depth | 8.1mm |
| Fail Short | No |
| Height | 8.1mm |
| Lead Free | Lead Free |
| Length | 6.07mm |
| Max Breakdown Voltage | 540V |
| Min Breakdown Voltage | 400V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole, Axial |
| Number of Poles | 2 |
| Package Quantity | 350 |
| Packaging | Tray |
| Peak Pulse Current | 20A |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | CG2 |
| Termination | Axial |
| Voltage Rating | 470V |
Compliance
| RoHS | Compliant |
Datasheet
Littelfuse CG2470L Datasheet
Download the complete datasheet for Littelfuse CG2470L to view detailed technical specifications.
The embedded preview will load automatically when this section scrolls into view.

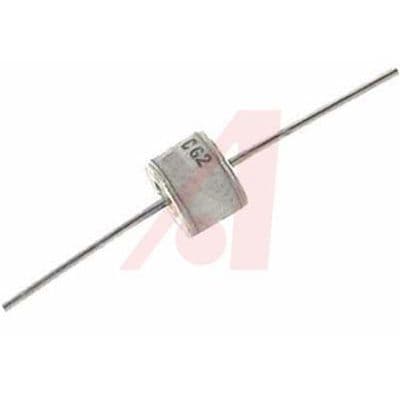

Product Images
