Surface mount thyristor surge protection device with a 6V repetitive reverse voltage rating. Features a 2.2A current rating and 50mA hold current, with a peak pulse current capability of 400A. Operates across a temperature range of -40°C to 150°C, housed in a DO-214AA (SMB) package. This lead-free component offers 75pF capacitance and is supplied in tape and reel packaging.
PackageDO-214AA
Capacitance75pF
Current Rating2.2A
MountingSurface Mount
Quick Jump:
Technical Specifications
Littelfuse P0080SCMCLRP technical specifications.
General
| Capacitance | 75pF |
| Package/Case | DO-214AA |
| Current Rating | 2.2A |
| Height | 2.45mm |
| Hold Current | 50mA |
| Lead Free | Lead Free |
| Length | 4.6mm |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -40°C |
| Max Repetitive Reverse Voltage (Vrrm) | 6V |
| Mount | Surface Mount |
| Number of Circuits | 1 |
| Number of Elements | 1 |
| Package Quantity | 2500 |
| Packaging | Tape and Reel |
| Peak Pulse Current | 400A |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | SIDACtor® |
| Weight | 0.003386oz |
| Width | 3.95mm |
Compliance
| RoHS | Compliant |
Datasheet
Littelfuse P0080SCMCLRP Datasheet
Download the complete datasheet for Littelfuse P0080SCMCLRP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

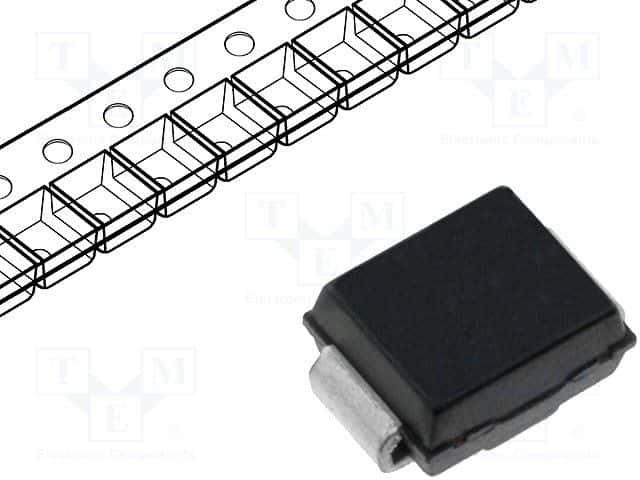

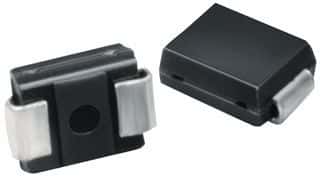

Product Images
