PackageDO-214AA
Capacitance45pF
Current Rating2.2A
MountingSurface Mount
Quick Jump:
Technical Specifications
Littelfuse P0300SCMCLRP technical specifications.
General
Capacitance
45pF
Package/Case
DO-214AA
Current Rating
2.2A
Height
2.45mm
Hold Current
50mA
Lead Free
Lead Free
Length
4.6mm
Max Operating Temperature
150°C
Min Operating Temperature
-40°C
Max Repetitive Reverse Voltage (Vrrm)
25V
Mount
Surface Mount
Number of Circuits
1
Number of Elements
1
Package Quantity
2500
Packaging
Tape and Reel
Peak Pulse Current
400A
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
SIDACtor®
Weight
0.003386oz
Width
3.95mm
Compliance
RoHS
Compliant
Datasheet
Littelfuse P0300SCMCLRP Datasheet
Download the complete datasheet for Littelfuse P0300SCMCLRP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

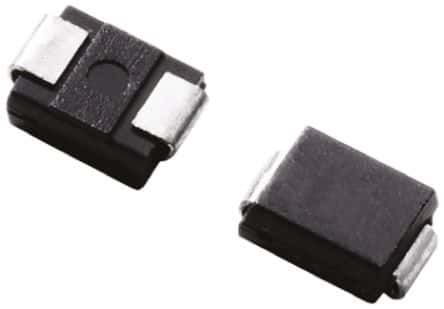

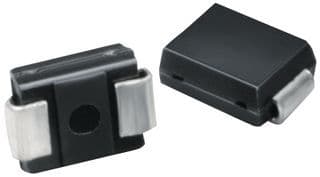

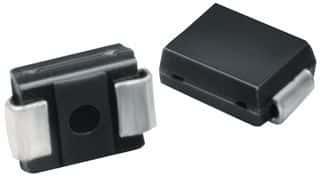

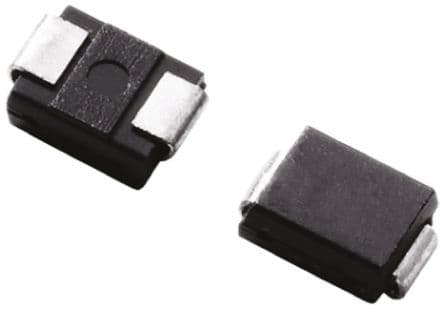

Product Images
