The P1300SBLRP is a single SIDACtor device with a capacitance of 60pF and a current rating of 2.2A. It is designed to operate within a temperature range of -40°C to 85°C and is compliant with RoHS regulations. The device is packaged in a small outline R-PDSO-C2 package and is available in quantities of 2500. It is suitable for surface mount applications and has a peak pulse current of 250A.
Capacitance60pF
Current Rating2.2A
MountingSurface Mount
Quick Jump:
Technical Specifications
Littelfuse P1300SBLRP technical specifications.
General
| Capacitance | 60pF |
| Current Rating | 2.2A |
| Hold Current | 150mA |
| Lead Free | Lead Free |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Number of Elements | 1 |
| Package Quantity | 2500 |
| Packaging | Tape and Reel |
| Peak Pulse Current | 250A |
| RoHS Compliant | Yes |
| Series | SIDACtor® |
| DC Rated Voltage | 120V |
| Weight | 0.003386oz |
Compliance
| RoHS | Compliant |
Datasheet
Littelfuse P1300SBLRP Datasheet
Download the complete datasheet for Littelfuse P1300SBLRP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

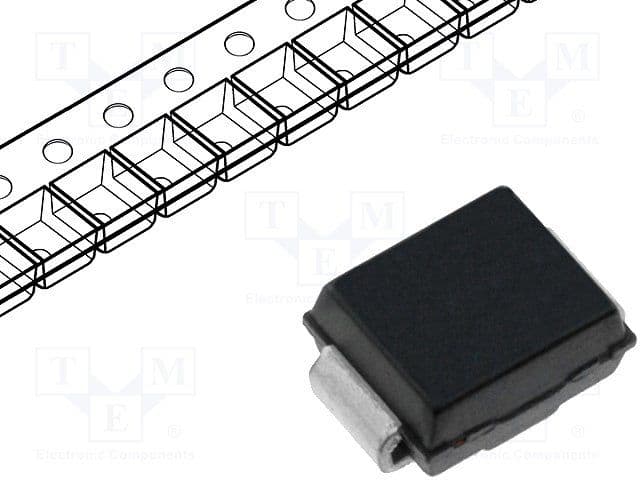

Product Images
