Littelfuse
P1800SBLRP
Silicon Surge Protector, 220V V(BO) Max, 25A, DO-214AA, HALOGEN FREE AND ROHS COMPLIANT, PLASTIC PACKAGE-2
PackageDO-214AA
Capacitance50pF
Current Rating2.2A
MountingSurface Mount
Quick Jump:
Technical Specifications
Littelfuse P1800SBLRP technical specifications.
General
| Capacitance | 50pF |
| Package/Case | DO-214AA |
| Current Rating | 2.2A |
| Hold Current | 150mA |
| Lead Free | Lead Free |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Number of Elements | 1 |
| Package Quantity | 2500 |
| Packaging | Tape and Reel |
| Peak Pulse Current | 250A |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | SIDACtor® |
| DC Rated Voltage | 170V |
Compliance
| RoHS | Compliant |
Datasheet
Littelfuse P1800SBLRP Datasheet
Download the complete datasheet for Littelfuse P1800SBLRP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

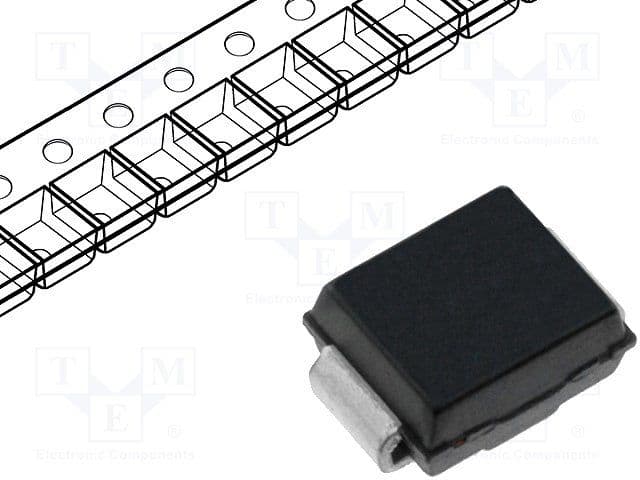

Product Images
