Unidirectional Transient Voltage Suppressor (TVS) diode designed for surface mount applications. Features a 400W peak pulse power rating and 7.6A peak pulse current handling. Offers a 33.3V reverse standoff voltage and 37.1V minimum breakdown voltage, with a 53.9V clamping voltage. Operates across a -65°C to 150°C temperature range. Packaged in a DO-214AC (SMA) case, this lead-free and RoHS compliant component is supplied on tape and reel.
PackageDO-214AC
MountingSurface Mount
PolarityUnidirectional
Quick Jump:
Technical Specifications
Littelfuse P4SMA39A technical specifications.
General
| Package/Case | DO-214AC |
| Clamping Voltage | 53.9V |
| Diode Type | ZENER |
| Height | 2.29mm |
| Lead Free | Lead Free |
| Length | 5.28mm |
| Min Breakdown Voltage | 37.1V |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -65°C |
| Max Surge Current | 7.6A |
| Mount | Surface Mount |
| Number of Channels | 1 |
| Number of Unidirectional Channels | 1 |
| Operating Supply Voltage | 33.3V |
| Package Quantity | 5000 |
| Packaging | Tape and Reel |
| Peak Pulse Current | 7.6A |
| Peak Pulse Power | 400W |
| Polarity | Unidirectional |
| Power Line Protection | No |
| Reverse Standoff Voltage | 33.3V |
| RoHS Compliant | Yes |
| Series | P4SMA |
| Termination | SMD/SMT |
| DC Rated Voltage | 39V |
| Width | 2.79mm |
Compliance
| RoHS | Compliant |
Datasheet
Littelfuse P4SMA39A Datasheet
Download the complete datasheet for Littelfuse P4SMA39A to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

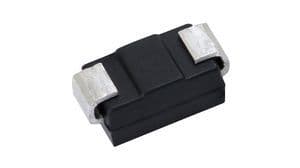

Product Images
