Unidirectional Transient Voltage Suppressor (TVS) diode offering 400W peak pulse power and 3.6A peak pulse current. Features a 70.1V reverse standoff voltage and 12.1V clamping voltage. Designed for surface mount with a DO-214AC (SMA) package, operating from -65°C to 150°C. This silicon component provides 77.9V minimum breakdown voltage and 33.9A maximum surge current.
PackageDO-214AC
MountingSurface Mount
PolarityUnidirectional
Quick Jump:
Technical Specifications
Littelfuse P4SMA82A technical specifications.
General
| Package/Case | DO-214AC |
| Clamping Voltage | 12.1V |
| Diode Type | ZENER |
| Height | 2.29mm |
| Lead Free | Lead Free |
| Length | 5.28mm |
| Min Breakdown Voltage | 77.9V |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -65°C |
| Max Surge Current | 33.9A |
| Mount | Surface Mount |
| Number of Channels | 1 |
| Number of Unidirectional Channels | 1 |
| Operating Supply Voltage | 7.02V |
| Package Quantity | 5000 |
| Packaging | Tape and Reel |
| Peak Pulse Current | 3.6A |
| Peak Pulse Power | 400W |
| Polarity | Unidirectional |
| Power Line Protection | No |
| Reverse Standoff Voltage | 70.1V |
| RoHS Compliant | Yes |
| Series | P4SMA |
| Termination | SMD/SMT |
| DC Rated Voltage | 8.2V |
| Width | 2.79mm |
Compliance
| RoHS | Compliant |
Datasheet
Littelfuse P4SMA82A Datasheet
Download the complete datasheet for Littelfuse P4SMA82A to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

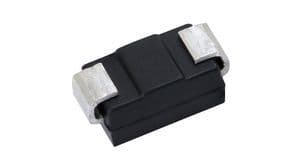

Product Images
