Bidirectional transient voltage suppressor diode, 600W peak pulse power, 11.1V reverse standoff voltage, and 18.2V clamping voltage. Features a 13V DC rated voltage, 12.4V minimum breakdown voltage, and 13.7V maximum breakdown voltage. Operates from -55°C to 175°C with a low 1µA leakage current. Packaged in a DO-204AC (DO-15) plastic package with axial termination for through-hole mounting.
PackageDO-204AC
MountingThrough Hole
PolarityBidirectional
Quick Jump:
Technical Specifications
Littelfuse P6KE13CA-B technical specifications.
General
| Package/Case | DO-204AC |
| Clamping Voltage | 18.2V |
| Diameter | 3.6mm |
| Diode Type | ZENER |
| Lead Free | Lead Free |
| Leakage Current | 1uA |
| Length | 7.6mm |
| Max Breakdown Voltage | 13.7V |
| Min Breakdown Voltage | 12.4V |
| Max Operating Temperature | 175°C |
| Min Operating Temperature | -55°C |
| Max Reverse Leakage Current | 1uA |
| Max Surge Current | 33.5A |
| Mount | Through Hole |
| Number of Bidirectional Channels | 1 |
| Number of Channels | 1 |
| Number of Elements | 1 |
| Operating Supply Voltage | 11.1V |
| Package Quantity | 1000 |
| Packaging | Bulk |
| Peak Pulse Current | 33.5A |
| Peak Pulse Power | 600W |
| Polarity | Bidirectional |
| Power Line Protection | No |
| Reverse Breakdown Voltage | 12.4V |
| Reverse Standoff Voltage | 11.1V |
| Reverse Voltage | 11.1V |
| RoHS Compliant | Yes |
| Series | P6KE |
| Termination | Axial |
| DC Rated Voltage | 13V |
Compliance
| RoHS | Compliant |
Datasheet
Littelfuse P6KE13CA-B Datasheet
Download the complete datasheet for Littelfuse P6KE13CA-B to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

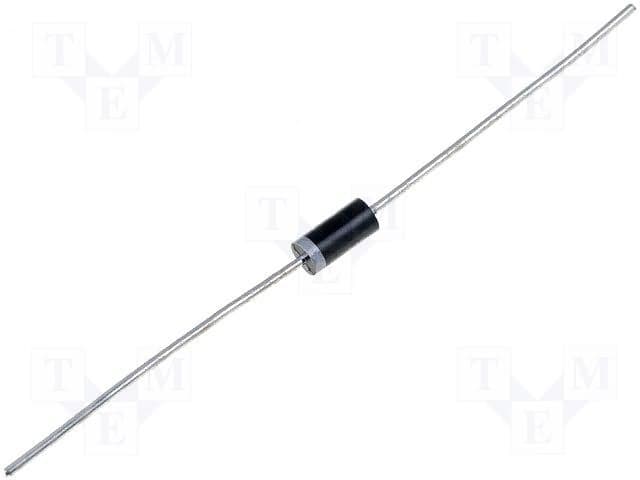

Product Images
