Unidirectional Transient Voltage Suppressor (TVS) diode with 600W peak pulse power and 16.3A peak pulse current. Features a 27V DC rated voltage, 23.1V reverse standoff voltage, and 25.7V minimum breakdown voltage. Clamping voltage is 37.5V. Operates from -55°C to 175°C. Through-hole mounting in a DO-204AC (DO-15) plastic package with axial termination.
PackageDO-204AC
MountingThrough Hole
PolarityUnidirectional
Quick Jump:
Technical Specifications
Littelfuse P6KE27A-B technical specifications.
General
| Package/Case | DO-204AC |
| Clamping Voltage | 37.5V |
| Diameter | 3.6mm |
| Diode Type | ZENER |
| Lead Free | Lead Free |
| Length | 7.6mm |
| Min Breakdown Voltage | 25.7V |
| Max Operating Temperature | 175°C |
| Min Operating Temperature | -55°C |
| Max Surge Current | 16A |
| Mount | Through Hole |
| Number of Channels | 1 |
| Number of Unidirectional Channels | 1 |
| Operating Supply Voltage | 23.1V |
| Package Quantity | 1000 |
| Packaging | Bulk |
| Peak Pulse Current | 16.3A |
| Peak Pulse Power | 600W |
| Polarity | Unidirectional |
| Power Line Protection | No |
| Reverse Standoff Voltage | 23.1V |
| RoHS Compliant | Yes |
| Series | P6KE |
| Termination | Axial |
| DC Rated Voltage | 27V |
Compliance
| RoHS | Compliant |
Datasheet
Littelfuse P6KE27A-B Datasheet
Download the complete datasheet for Littelfuse P6KE27A-B to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

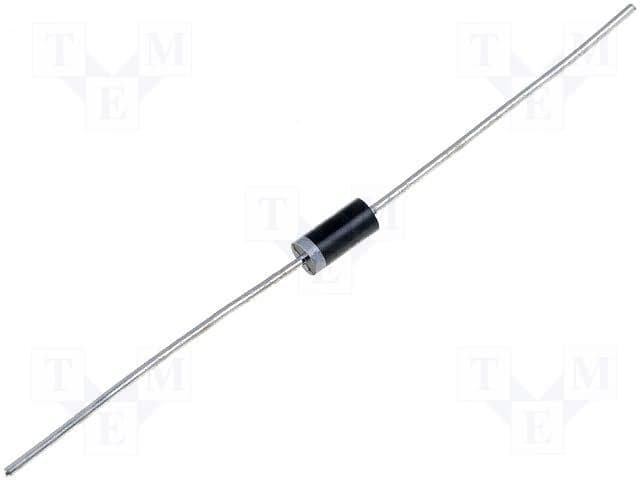

Product Images
