Unidirectional TVS Diode for surge suppression, featuring a 40.2V reverse standoff voltage and 44.7V minimum breakdown voltage. This DO-15 package component offers a 64.8V clamping voltage, 5W power dissipation, and 600W peak pulse power handling. Designed for through-hole mounting with axial termination, it operates across a -55°C to 175°C temperature range and is RoHS compliant.
PackageDO-15
MountingThrough Hole
PolarityUnidirectional
Power600W
Quick Jump:
Technical Specifications
Littelfuse P6KE47A technical specifications.
General
Package/Case
DO-15
Clamping Voltage
64.8V
Clamping Voltage-Max
64.8V
Diameter
3.6mm
Diode Type
ZENER
Direction
Unidirectional
Lead Free
Lead Free
Leakage Current
1uA
Length
7.6mm
Max Breakdown Voltage
49.4V
Min Breakdown Voltage
44.7V
Max Operating Temperature
175°C
Min Operating Temperature
-55°C
Max Power Dissipation
5W
Max Surge Current
9.3A
Mount
Through Hole
Number of Channels
1
Number of Elements
1
Number of Unidirectional Channels
1
Operating Supply Voltage
40.2V
Package Quantity
4000
Packaging
Tape and Reel
Peak Pulse Current
9.4A
Peak Pulse Power
600W
Polarity
Unidirectional
Power Dissipation
600W
Power Line Protection
No
Reach SVHC Compliant
No
Reverse Breakdown Voltage
44.7V
Reverse Standoff Voltage
40.2V
RoHS Compliant
Yes
Series
P6KE
Termination
Axial
DC Rated Voltage
47V
Compliance
RoHS
Compliant
Datasheet
Littelfuse P6KE47A Datasheet
Download the complete datasheet for Littelfuse P6KE47A to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

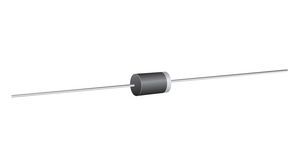

Product Images
