Alternistor TRIAC, 40A RMS current, 400V V(DRM) blocking voltage. Features a TO-218-3 plastic package for through-hole mounting. Operates from -40°C to 125°C with a 100mA hold current. RoHS compliant and lead-free.
PackageTO-218-3
MountingThrough Hole
Quick Jump:
Technical Specifications
Littelfuse Q4040K7TP technical specifications.
General
| Package/Case | TO-218-3 |
| Hold Current | 100mA |
| Lead Free | Lead Free |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole |
| Package Quantity | 250 |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RMS Current (Irms) | 40A |
| RoHS Compliant | Yes |
Compliance
| RoHS | Compliant |
Datasheet
Littelfuse Q4040K7TP Datasheet
Download the complete datasheet for Littelfuse Q4040K7TP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

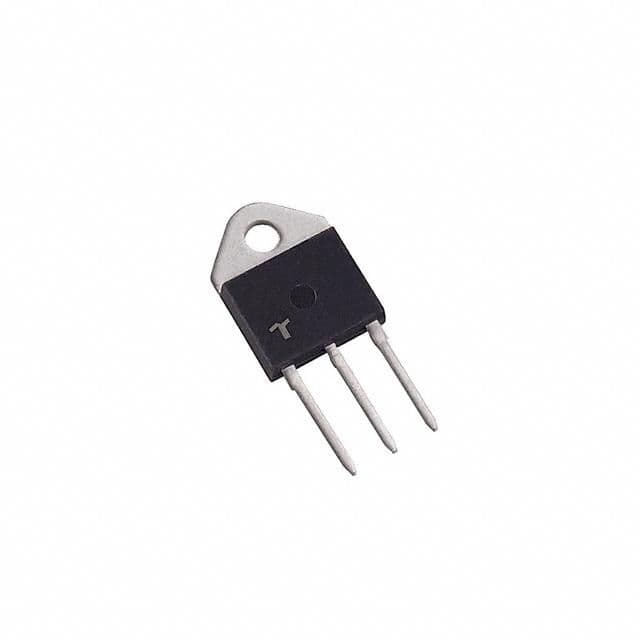

Product Images
