Bidirectional transient voltage suppressor diode, 500W peak pulse power, 33V reverse standoff voltage. Features 53.3V clamping voltage, 9.6A peak pulse current, and 40.6V max breakdown voltage. Operates from -55°C to 175°C in a DO-204AC plastic package with axial termination. This silicon component offers 1 bidirectional channel and is RoHS compliant.
PackageDO-204AC
MountingThrough Hole
PolarityBidirectional
Power500W
Quick Jump:
Technical Specifications
Littelfuse SA33CA technical specifications.
General
| Package/Case | DO-204AC |
| Clamping Voltage | 53.3V |
| Clamping Voltage-Max | 53.3V |
| Diameter | 3.6mm |
| Diode Type | ZENER |
| Direction | Bidirectional |
| Lead Free | Lead Free |
| Length | 7.6mm |
| Max Breakdown Voltage | 40.6V |
| Min Breakdown Voltage | 36.7V |
| Max Operating Temperature | 175°C |
| Min Operating Temperature | -55°C |
| Max Surge Current | 9.6A |
| Mount | Through Hole |
| Number of Bidirectional Channels | 1 |
| Number of Channels | 1 |
| Operating Supply Voltage | 33V |
| Package Quantity | 4000 |
| Packaging | Tape and Reel |
| Peak Pulse Current | 9.6A |
| Peak Pulse Power | 500W |
| Polarity | Bidirectional |
| Power Dissipation | 500W |
| Power Line Protection | No |
| Reverse Standoff Voltage | 33V |
| RoHS Compliant | Yes |
| Series | SA |
| Termination | Axial |
| DC Rated Voltage | 33V |
Compliance
| RoHS | Compliant |
Datasheet
Littelfuse SA33CA Datasheet
Download the complete datasheet for Littelfuse SA33CA to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

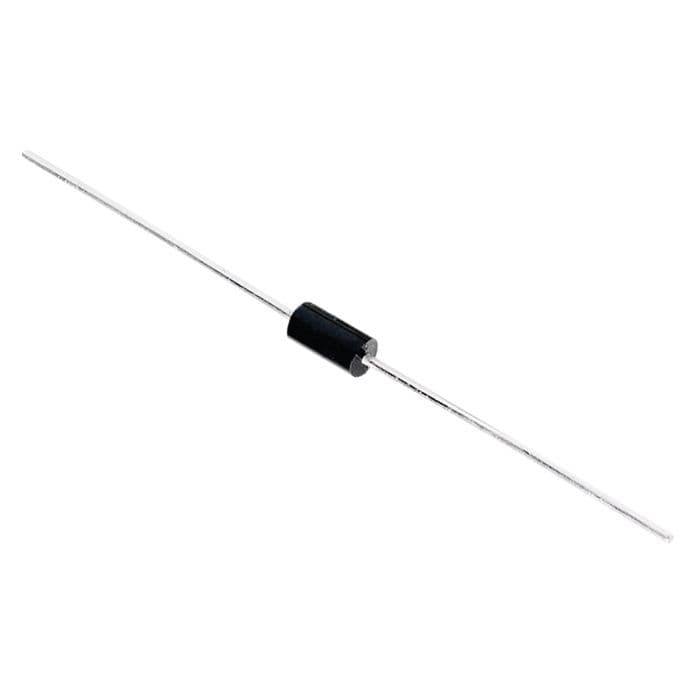

Product Images
