PackageDO-214AC
MountingSurface Mount
PolarityUnidirectional
Quick Jump:
Technical Specifications
Littelfuse SMAJ150A technical specifications.
General
| Package/Case | DO-214AC |
| Diode Type | ZENER |
| Height | 2.29mm |
| Lead Free | Lead Free |
| Length | 5.28mm |
| Max Breakdown Voltage | 185V |
| Min Breakdown Voltage | 167V |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -65°C |
| Max Power Dissipation | 3.3W |
| Mount | Surface Mount |
| Number of Unidirectional Channels | 1 |
| Packaging | Cut Tape |
| Peak Pulse Current | 1.6A |
| Peak Pulse Power | 400W |
| Polarity | Unidirectional |
| Power Line Protection | No |
| Reach SVHC Compliant | No |
| Reverse Standoff Voltage | 150V |
| RoHS Compliant | Yes |
| Series | SMAJ |
| DC Rated Voltage | 150V |
| Width | 2.79mm |
Compliance
| RoHS | Compliant |
Datasheet
Littelfuse SMAJ150A Datasheet
Download the complete datasheet for Littelfuse SMAJ150A to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

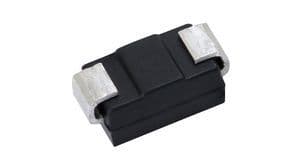

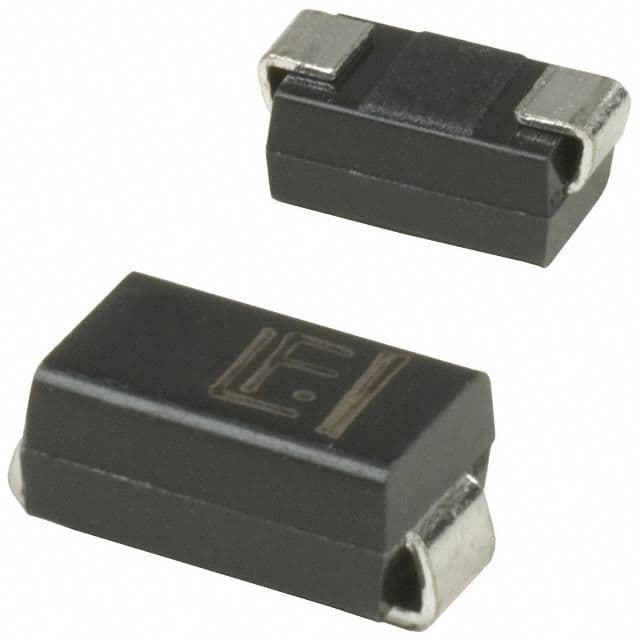

Product Images
